Stepper & DC Motor Controller 980-0045-USB
← Back to product family

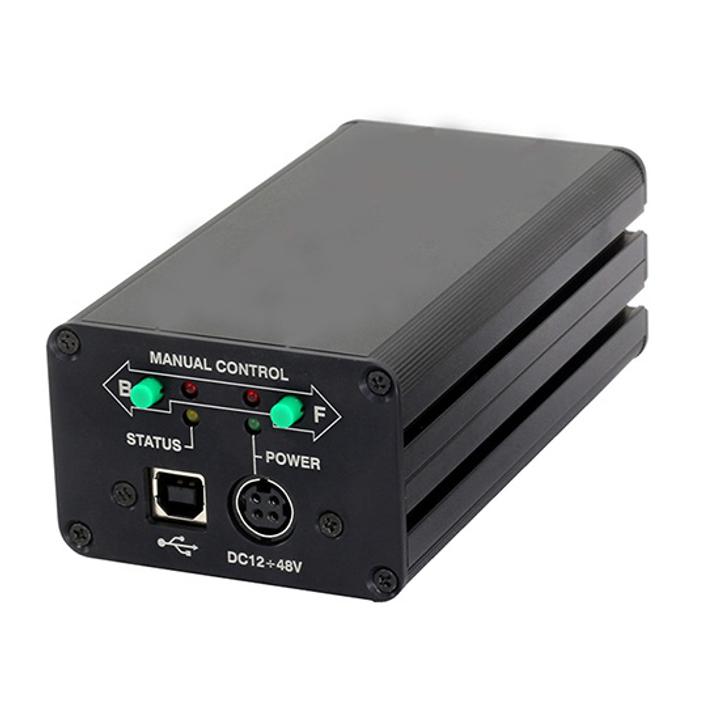

Stepper & DC Motor Controller 980-0045-USB SKU: 980-0045-BR

• One interface for stepper and DC motors • Up to 35000 steps/s even in microstep mode, 20000 rpm for DC motor • High resolution - 256 microsteps • Smooth movement at low speeds • Compatible with the latest Windows, Linux & MacOS including 64-bit OS versions • Programming…

Variant specifications

Specification Value
Details 1-axis controller circuit card for brake equipped motor

Shared product specifications

These specifications apply across the Stepper & DC Motor Controller 980-0045-USB product family.

Motor Bipolar, two phase stepper motors with current ratings 0.1 A to 3 A and DC motors with the winding current up to 6 A. / Motor current setup by software.
Power Supply Power supply voltage ranges from 12 V to 48 V.
Motion Step division: 1 / 1 step / div. - 1 / 256 step / div. Speed: 1 / 256 - 35000 steps / s or 20 000 RPM for DC. 40 bit position counter (32 bit for full step and 8 bit for microstep). Silent low speed motion. Programmable speed and trip points. Programmable acceleration and deceleration ramps. Jerk free mode. Fully automatic algorithm with two sensors. Stall detection. Auto-save current position in controller.
Peripherals Two programmable limit switches. Quadrature encoder, feedback bandwidth 200 kHz. Differential encoder, feedback bandwidth 5 MHz. External brake support, 24 V output. Synchronization output. Revolution sensor input for stall detection. Controller has additional stabilized 5 V, 100 mA output for ext. peripherals.
Protections ESD protection for all external pins. USB / power over-current / over-voltage protection. Coil short circuit and earth fault protection.
Control Via USB port with PC Via COM port with PC (optional). Analog joystick for external motion control. Two digital buttons for external motor control. Synchronization input for external motion start.
Programming Full featured GUI XILab provides all functionality in one window. Internal XILab script language enables very easy and fast programming. All software Windows 8, Windows 7, Windows Vista, Windows XP, Linux and MAC OS X compatible, including x64 versions. Cross platform development kit for C, C++, C#, DELPHI, Visual Basic, GCC, Xcode, LabVIEW available.
