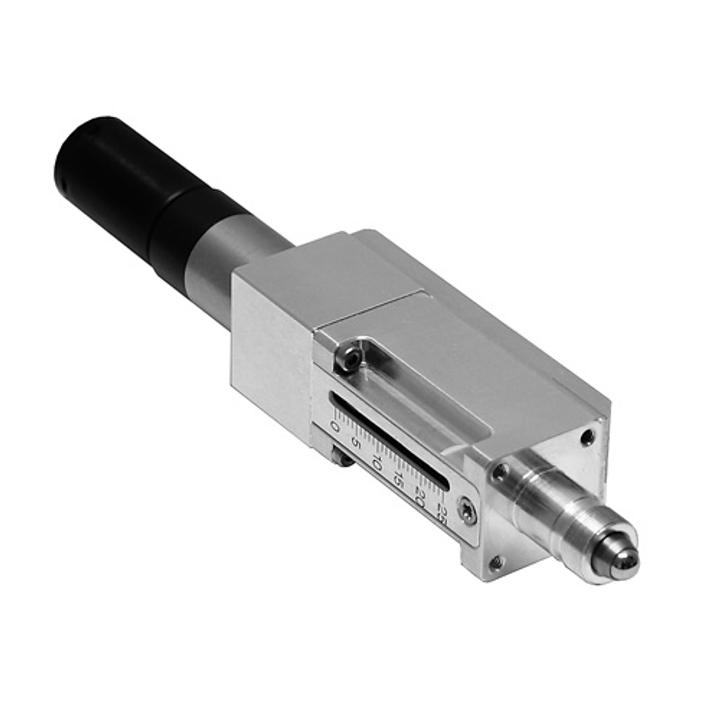

Ultra-High Resolution Compact Motorized Actuator with Vacuum Compatible DC motor 970-0067V SKU: 970-0067V-10*
• 13 mm or 25 mm travel range • Lead screw pitch is 0.25 mm • Max. speed is 0.15 mm/s • Cable: integrated, 2 m length • Non-vacuum version Motorized actuators mostly used in mirror and optical mounts for remote fine adjustment. Field of application limited only by…
Variant specifications
| Specification | Value |
|---|---|
| L | 120...133 |
| L1 | 10 |
| L2 | 4.5 |
| L3 | 40 |
Shared product specifications
These specifications apply across the Ultra-High Resolution Compact Motorized Actuator with Vacuum Compatible DC motor 970-0067V product family.
| Model | 970-0067V-13 | 970-0067V-25 |
|---|---|---|
| Travel range | 13 mm | 25 mm |
| Minimum Incremental Motion | 0.028 µm | 0.028 µm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Max. speed | 0.15 mm / s | 0.15 mm / s |
| Nominal force | 30 N | 30 N |
| Cable | integrated, 2 m length | integrated, 2 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| Vacuum compatible DC motor | DCE1841 | DCE1841 |
| Weight | 0.12 kg | 0.15 kg |
