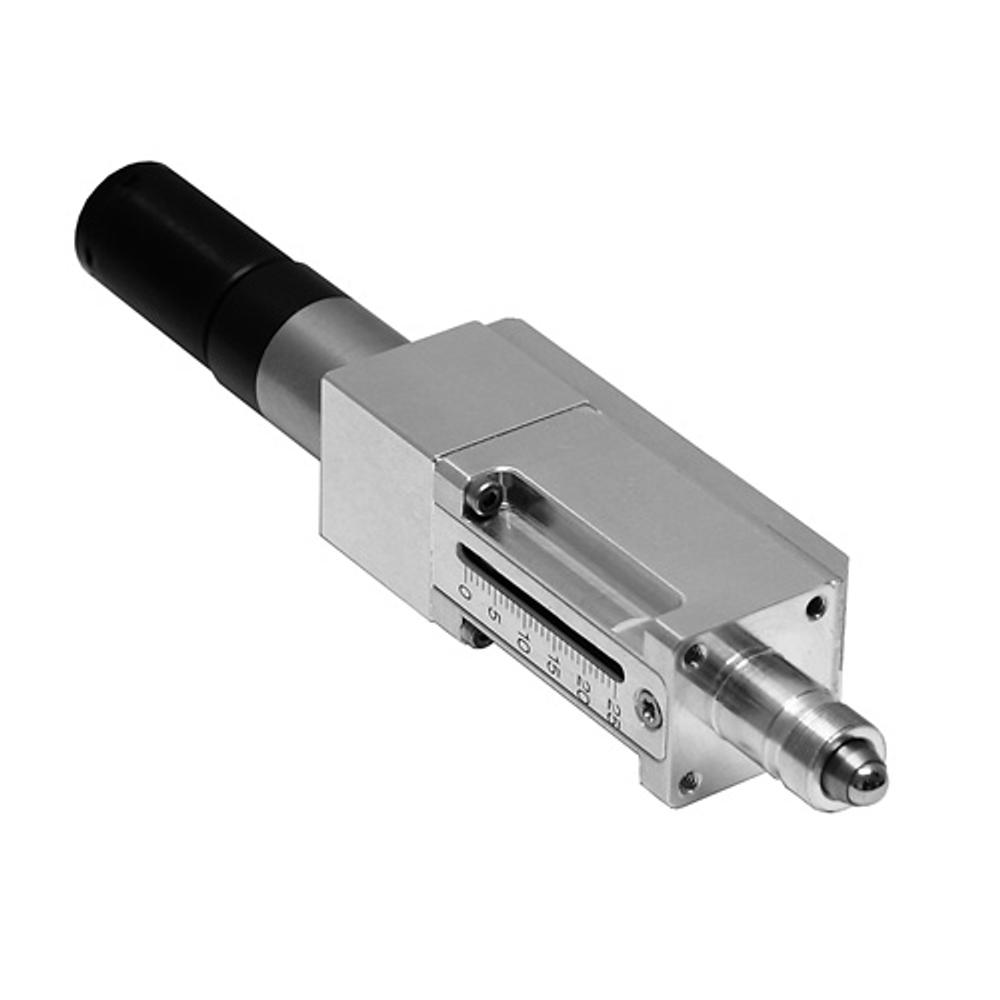

Ultra-High Resolution Compact Motorized Actuator with Vacuum Compatible DC motor 970-0067V
• 13 mm or 25 mm travel range • Lead screw pitch is 0.25 mm • Max. speed is 0.15 mm/s • Cable: integrated, 2 m length • Non-vacuum version Motorized actuators mostly used in mirror and optical mounts for… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
L
Any
or
L1
Any
or
L2
Any
or
L3
Any
or
3
catalog variants — refine the spec to narrow it down.
| SKU | L · L3 · L1 · L2 | |
|---|---|---|
| 970-0067V-10* | 120...133·40·10·4.5 |
Out of stock
—
|
| 970-0067V-13 | 125...138 mm·50 mm·15 mm·7 mm |
Out of stock
—
|
| 970-0067V-25 | 135...160 mm·60 mm·15 mm·7 mm |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 970-0067V-13 | 970-0067V-25 |
|---|---|---|
| Travel range | 13 mm | 25 mm |
| Minimum Incremental Motion | 0.028 µm | 0.028 µm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Max. speed | 0.15 mm / s | 0.15 mm / s |
| Nominal force | 30 N | 30 N |
| Cable | integrated, 2 m length | integrated, 2 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| Vacuum compatible DC motor | DCE1841 | DCE1841 |
| Weight | 0.12 kg | 0.15 kg |
Description
- 13 mm or 25 mm travel range
- Lead screw pitch is 0.25 mm
- Max. speed is 0.15 mm/s
- Cable: integrated, 2 m length
- Non-vacuum version
Motorized actuators mostly used in mirror and optical mounts for remote fine adjustment. Field of application limited only by creativity of the user. Actuator body is made from aluminum. Actuators are cleaned in vacuum chamber before packing and shipping.
