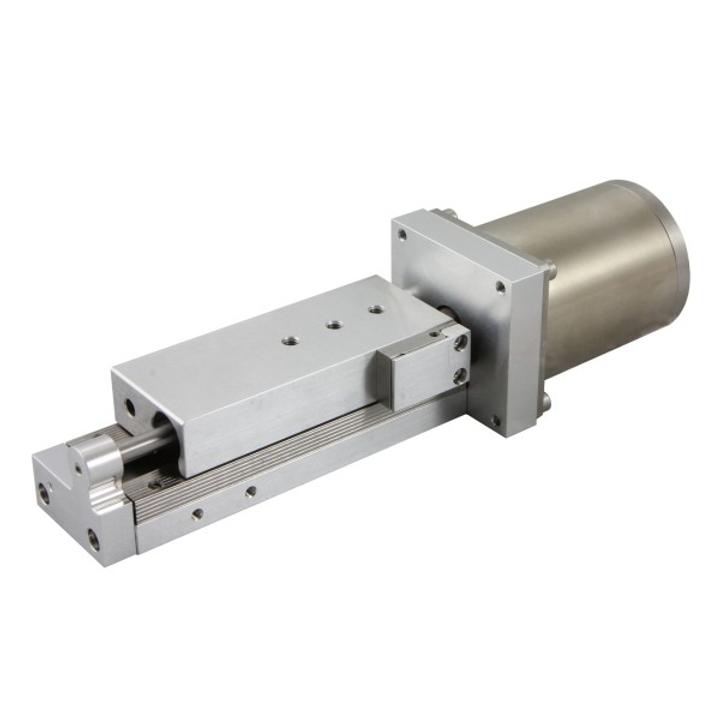

Vacuum Compatible Narrow Motorized Translation Stage 961-0050V SKU: 961-0050V
961-0050V Narrow Motorized Translation Stage is equiped with 10-6 Torr vacuum compatible motor, all mechanical parts are lubricated with high vacuum compatible grease. Aluminium parts are not anodized. Stages are cleaned in vacuum stage and packed before dispatch, so that it…
Shared product specifications
These specifications apply across the Vacuum Compatible Narrow Motorized Translation Stage 961-0050V product family.
| 961-0050V | |
| Travel range | 50 mm |
| Lead screw pitch | 0.25 mm |
| Resolution | 0.029 µm |
| Minimal incremental motion | 0.1 µm |
| Bi-directional Repeatability | 0.4 µm |
| Max. speed | 0.5 mm / s |
| Load capacity: / Horizontal / Vertical | 5 kg / 1 kg |
| Cable | integrated, 2 m length |
| Motor connector | HDB15(M) |
| DC Motor | DCE1841 |
| Assemblies: / X-Y / Z | 810-0250-01V / 810-0150-01V |
| Recommended controllers | 980-0060-USB |
