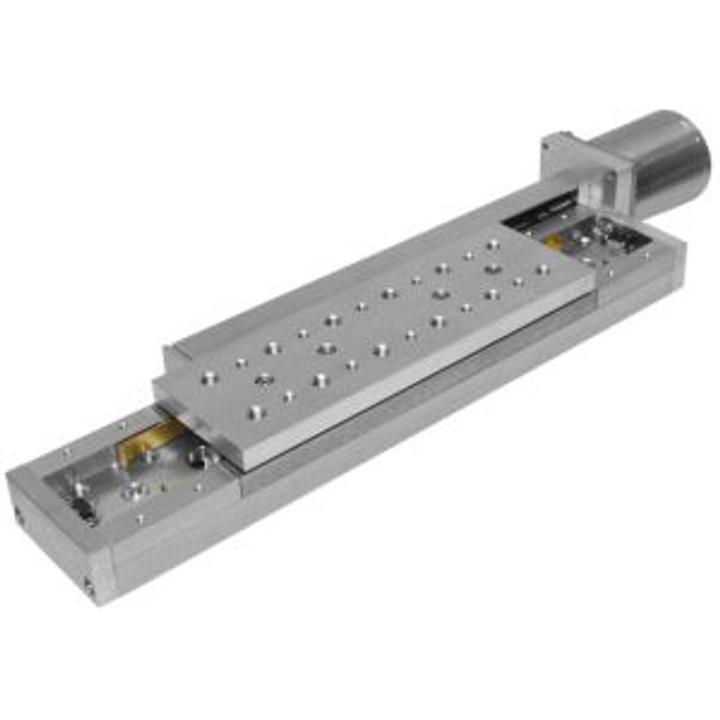

Vacuum Compatible Motorized Stages 960-0060V SKU: 960-0060V-06
• Narrow • Compact design • Resolution 0.31 µm (1/8 step) • High guide way accuracy • Lead screw pitch 0.5 mm • X-Y-Z configurations available • Non vacuum version Vacuum Compatible Motorized Stages are equipped with vacuum compatible stepper motor. Stages stack in X-Y…
Variant specifications
| Specification | Value |
|---|---|
| Description | travel range - 50 mm |
Shared product specifications
These specifications apply across the Vacuum Compatible Motorized Stages 960-0060V product family.
| Lead screw pitch | 0.5 mm |
| Resolution in full step | 2.5 µm |
| Max. speed | 5 mm / s |
| Load capacity Horizontal Vertical | 8 kg 3 kg |
| Vacuum, Torr | 10⁻⁶ |
| Motor connector | DB9(M) |
| Stepper motor | VSS42 |
| Wiring scheme of the motor VSS42 | bipolar |
| Design Voltage of the motor VSS42, V | 42 |
| Phase Current of the motor VSS42, A | 1.2 |
| Holding Torque of the motor VSS42, Nm | 0.13 |
| Detent Torque of the motor VSS42, mNm | 5 |
| Phase Resistance of the motor VSS42, Ohm | 1.7 |
| Inductance of the motor VSS42, mH | 3 |
| Steps / Revolution of the motor VSS42 | 200(1.8°) |
| Assemblies of the motor VSS42 X-Y Z To flat surface | directly 810-0160V 820-0115V |
| Snap-action limit switch | two end switches |
| Type | Pushed is "closed" |
