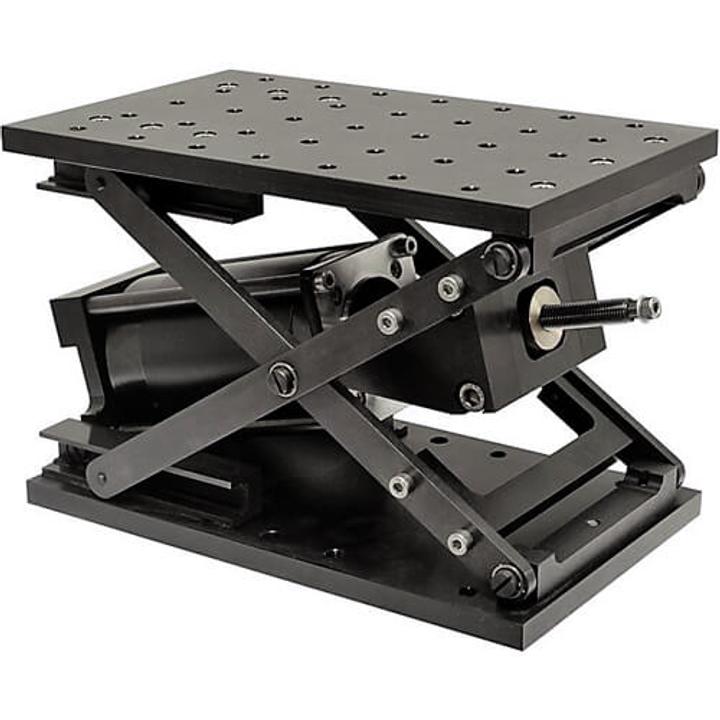

Motorized Vertical Translation Stage 940-0200 SKU: 940-0200
• Pantograph design • 16 ball bearings • Stepping motor drive • Precision lead screw • 95 mm vertical travel • Height: min 89 mm, max 184 mm • Top and bottom plates parallel to 1 mm • Load capacity 8 kg (depending on motor & controller) • Supply voltage 36V Motorized Vertical…
Shared product specifications
These specifications apply across the Motorized Vertical Translation Stage 940-0200 product family.
| Travel range | 95 mm |
| Height / Min. / Max. | 89 mm / 184 mm |
| Lead screw pitch | 1 mm |
| Top and bottom plates parallel to | 1 mm |
| Load capacity | 8 kg (depending on motor and controller) |
| Material | black anodized aluminium |
| Supply voltage | 36 V |
| Motor connector | DB9(M) |
| Motor | 5618 |
| Weight | 4,3 kg |
| Mechanical end limit switches | 2 |
| Switch polarity | pushed is closed |
| Motorized Vertical Translation Stage - DWG file |
