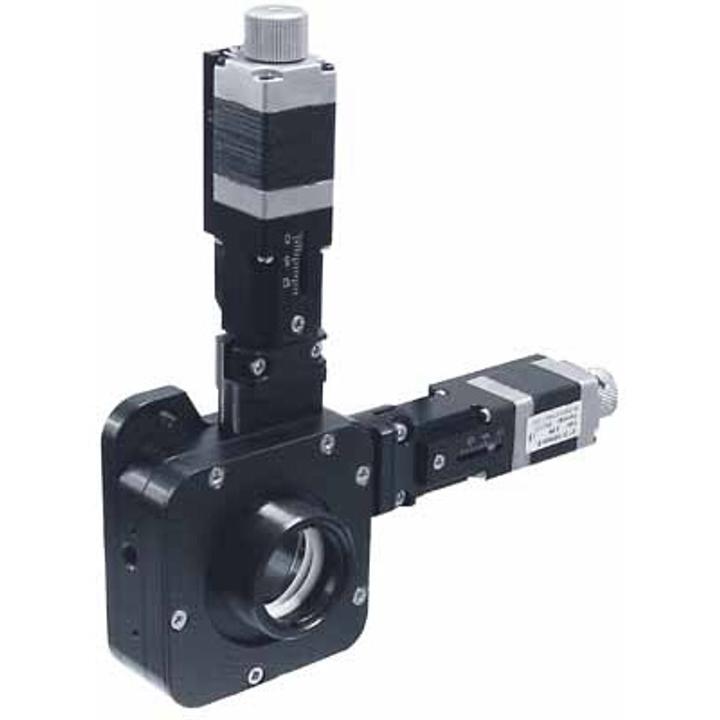

Motorized Two Axes Translation Optical Mount 940-0070 SKU: 940-0070
• 1'' optics mount • Limit switch: optoelectronic couple • Designed for microscopy applications • Made of black anodized aluminium The 940-0070 motorized two axes translation mount is made of 840-0207 XY translation mount and 970-0060 compact motorized actuator.
Shared product specifications
These specifications apply across the Motorized Two Axes Translation Optical Mount 940-0070 product family.
| Resolution / in full step / in 1 / 8 step | 1.25 μm / 0.156 μm |
| XY translation range | ±2 mm |
| Lead screw pitch | 0.25 mm |
| Optics diameter | 25.4 mm |
| Clear aperture | 23 mm |
| Installed actuators | 2 x 970-0060 |
| Cable | 1.2 m length cable included |
| Motor connector | HDB15(M) (wiring diagram) |
| Weight | 0,8 kg |
| Optocoupler end limit switches | 2 per actuator |
| Switch polarity | pushed is open |
| Motorized Two Axes Translation Optical Mount - Solidworks file | |
| Motorized Two Axes Translation Optical Mount - DWG file | |
| Motorized Two Axes Translation Optical Mount - STEP file |
