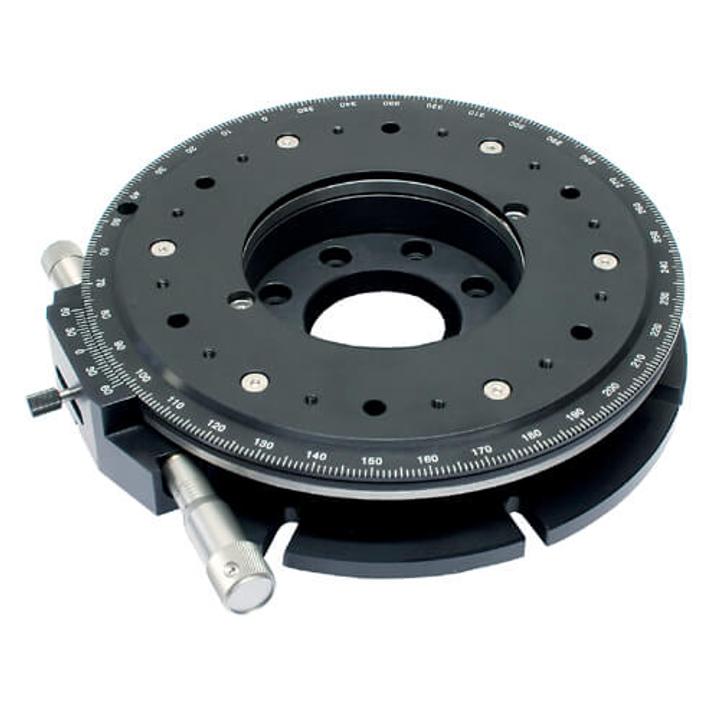

Rotary Stage 860-0165 SKU: 860-0165V
• Ø 190 mm platform • Ø 88.9 mm clear aperture • 360° rotation • 10° Fine adjustment • Available for vacum (860-0165V) Rotary stage of Big Platform 860-0165 is used to rotate manually large optical and other components through continuous 360° with accuracy of 1°, and finely to…
Variant specifications
| Specification | Value |
|---|---|
| Description | vacuum compatible rotary stage |
Shared product specifications
These specifications apply across the Rotary Stage 860-0165 product family.
| Coarse rotation range | 360° |
| Fine rotation range | 10° |
| Reading accuracy | 0.5 arcmin |
| Sensitivity | 0.1 arcmin |
| Wobble | 1 arcmin |
| Horizontal load capacity | 60 kg |
| Material | Aluminium |
| Finish | Black Anodized |
Classification
| Type | translation|rotation |
