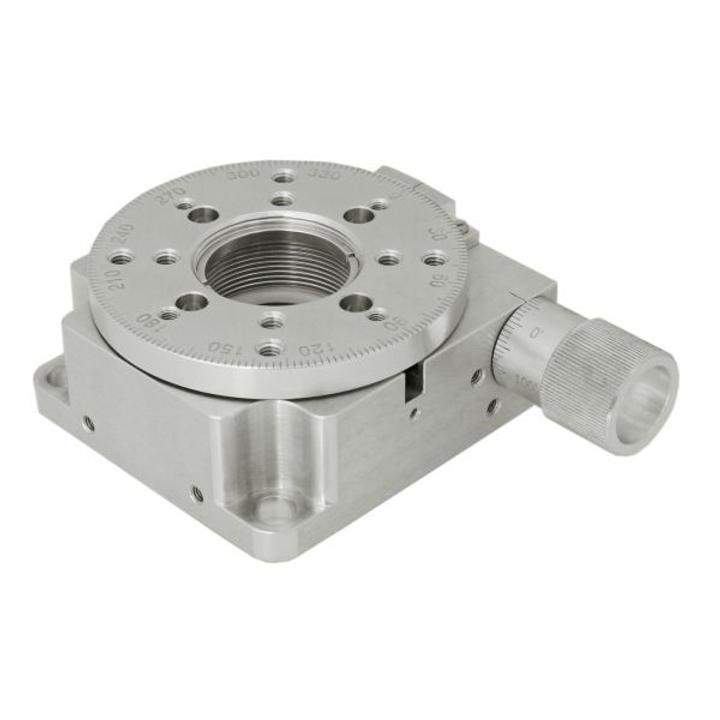

Vacuum Compatible Rotation Stage 860-0155V SKU: 860-0155V-02
• Continuous rotation • Very compact design • No need to use extra adapter plate • Non vacuum version • Motorized version of the Stages The main advantage of this precise rotation stage is that it has very compact dimensions and low-profile together with the great aperture in…
Variant specifications
| Specification | Value |
|---|---|
| Description | 30 mm; Inch |
Shared product specifications
These specifications apply across the Vacuum Compatible Rotation Stage 860-0155V product family.
| Rotation range | 360° |
| Sensitivity | 0.4 arcmin |
| Reading accuracy | 2 acrmin |
| Resoliution | 2 arcmin |
| Wobble | 0,6 arcmin |
| Eccentricity | 10 µm |
| Load capacity: / Horizontal / Radial | 8,0 kg / 1,7 kg |
| Weight | 0,55 kg |
Classification
| Type | translation|rotation |
