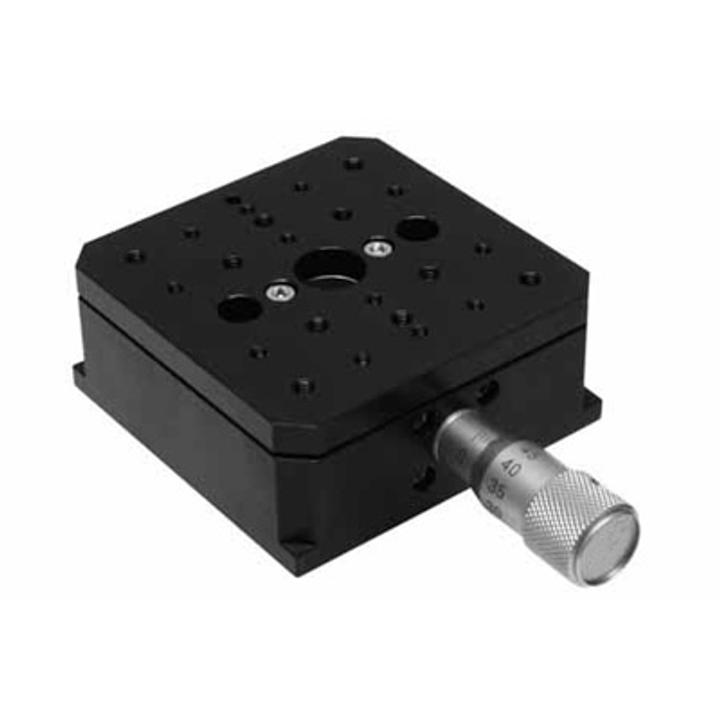

Linear Flexure Translation Stage 860-0105 SKU: 860-0105XYZ
• Extremely low friction • Stackable for X-Y-Z configurations The 860-0105 linear flexure translation stages provide ultra smooth translation for optical assemblies and other components. These stages guarantee linearity of motion over the whole travel range. High stability and…
Shared product specifications
These specifications apply across the Linear Flexure Translation Stage 860-0105 product family.
| Travel range | 5 mm |
| Sensitivity with: / Micrometer screw / Differential screw | 1 µm / 0.1 µm |
| Tracking accuracy | 2 µm |
| Reading accuracy | 10 µm |
| Load capacity | 1 kg |
| Assemblies: / X-Y / Z | directly / angle bracket |
Classification
| Type | translation|rotation |
