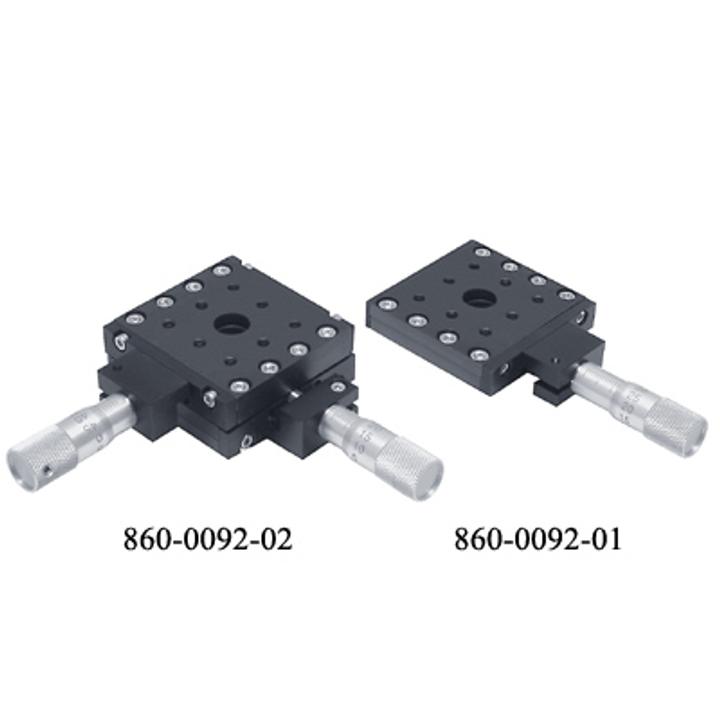

Ultra Low Profile Steel Translation Stages. Single and Two-Axes 860-0092 SKU: 860-0092-01SSVU
• 10.5 mm in height • 1axis stage • Compact X-Y configuration • Exceptionally precise orientation of axes at 90° • Precision movement • 10 travel range • Stages of stainless steel are available Precision ball bearings Ultra Low Profile Steel Two-Axes 860-0092-02 and Single Axis…
Variant specifications
| Specification | Value |
|---|---|
| Description | made of stainless steel; Vacuum 10-6 Torr compatible Drawing B |
| Weight | 0.2 kg |
Shared product specifications
These specifications apply across the Ultra Low Profile Steel Translation Stages. Single and Two-Axes 860-0092 product family.
| Travel range | 10 mm | 10 mm |
|---|---|---|
| Sensitivity | 1µm | 1µm |
| Tracking accuracy | 2 µm | 2 µm |
| Reading accuracy | 5 µm (½ division) | 5 µm (½ division) |
| Load capacity: horizontal vertical | 6 kg / 3 kg | 6 kg / 3 kg |
Classification
| Type | translation|rotation |
