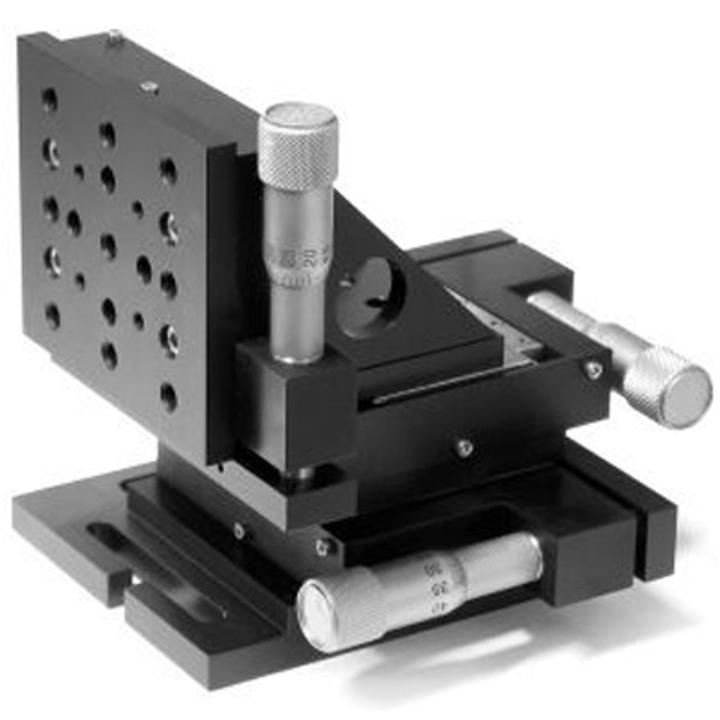

Translation System 860-0051XYZ SKU: 860-0051E XYZ
XYZ movement, micrometer drive within 15 mm travel range. Vacuum compatible translation system 860-0051V-XYZ is available. Translation system 860-0051XYZ is assembled of: • Three 860-0051 translation stages • One angle bracket 810-0110 • One plate 820-0136-01 • One connecting…
Shared product specifications
These specifications apply across the Translation System 860-0051XYZ product family.
| Travel range | 15 mm |
| Sensitivity | 1 µm |
| Tracking accuracy | 2 µm |
| Scale graduation | 10 µm |
| Load capacity | 5 kg |
Classification
| Type | translation|rotation |
