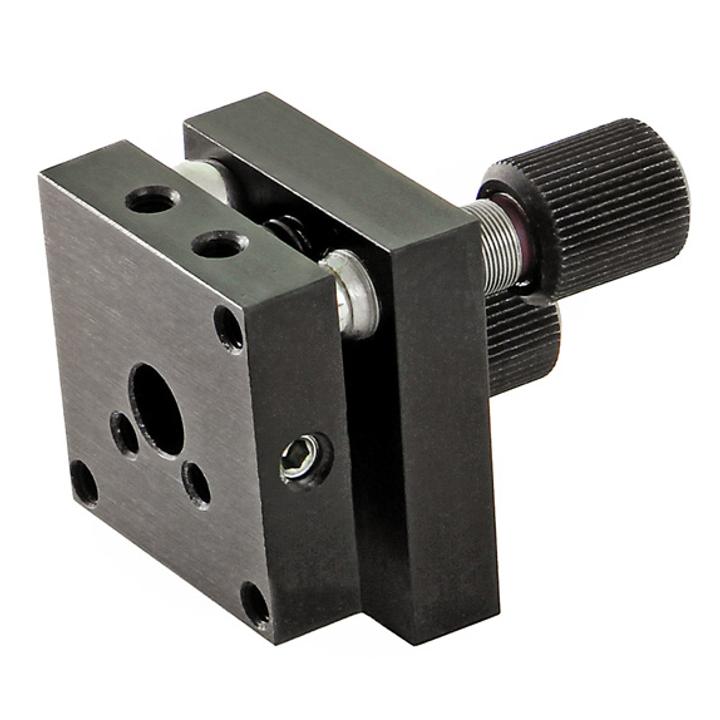

Mirror / Optics Mount 840-0060 SKU: 840-0060S-45
These black anodized aluminium precision mirror mounts are ideal for holding 25 mm and smaller optics in tight spaces. The M4 and M6 taped holes are provided for mounting. • Miniature mounts for small optics • ±10° tilt adjustments about two orthogonal axes • High degree of…
Variant specifications
| Specification | Value |
|---|---|
| Description | mount with wrench driven screws and adapter for 45 deg |
Shared product specifications
These specifications apply across the Mirror / Optics Mount 840-0060 product family.
| Mechanism | kinematic |
| Drive type | knob |
| Adjustments | Θx, Θy |
| Special features | platform mount |
| Angular range | ±10° |
| Sensitivity | 10 arcsec |
| Mounting thread | M4 (2 holes) |
| Fine screw thread | M6x35 |
| 840-0060-45S Mirror / Optics Mount - DWG file | |
| 840-0060-45S Mirror / Optics Mount - STEP file |
