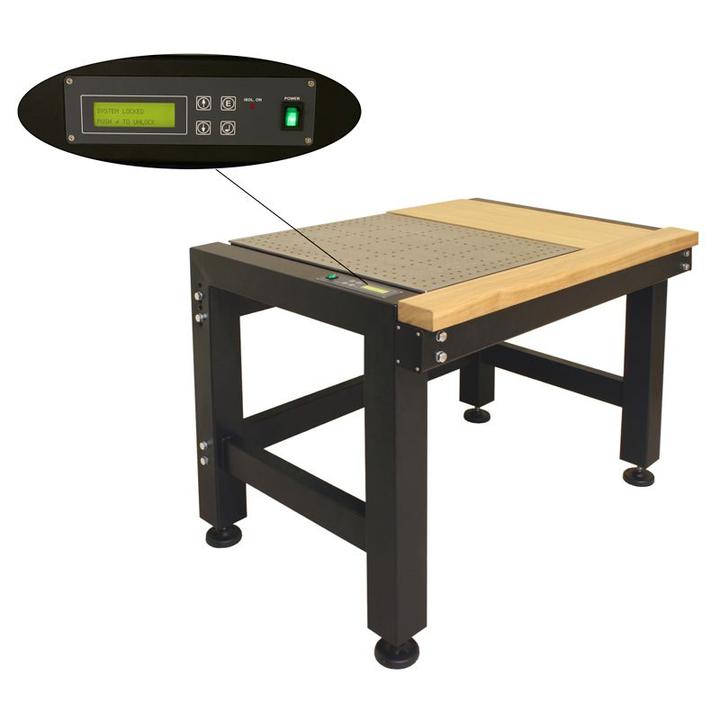

Active Vibration Isolation Workstation 778-5060 SKU: 778-5060 AL
APPLICATIONS: • Scanning probe microscopy; • Scanning electron microscopy; • Scanning near-field optical microscopy / NSOM; • Control laser microscopy; • Interferometry; • Metrology / Profilometry; • Nano indentation; • Nano lithography; • Ultrathin film applications; •…
Variant specifications
| Specification | Value |
|---|---|
| Description | with active system 770-5060 AL |
Shared product specifications
These specifications apply across the Active Vibration Isolation Workstation 778-5060 product family.
Specifications
| Isolation | dynamic 0.7 Hz to 200 Hz, mainly passive at higher frequencies, although for good stability the feedback is active to at least 2 kHz |
| Transmissibility | See curve. Above 10 Hz transmissibility <0.01 (-40dB) |
| Maximum load | 140 kg |
| Working surface | 500x600 mm |
| Self - weight | 23 kg |
Normal Environmental Conditions
| Protection class | IP 20 |
| Temperature range | 5°C - 40°C |
| Relative Humidity | 10 - 90% (5 - 30°C) / 10 - 60% (30 - 40°C) |
| Application | Indoor |
| Altitude | Up to 2000 m (6.500 ft) |
Electrical
| Safety class | 1 |
| Power consumption | maximum 10 W when isolating, maximum 20W during load adjustment |
| Input voltage | 90 – 120V AC, 47 – 63 Hz / 200 – 240V AC, 47 – 63 Hz |
| Fuses | 2x1.6A/250V slow, located in the power socket on the rear side of the unit |
