Active Vibration Isolation Workstation 778-5060
APPLICATIONS: • Scanning probe microscopy; • Scanning electron microscopy; • Scanning near-field optical microscopy / NSOM; • Control laser microscopy; • Interferometry; • Metrology / Profilometry; • Nano… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 778-5060 | with active system 770-5060 |
Out of stock
—
|
| 778-5060 AL | with active system 770-5060 AL |
Out of stock
—
|
| 778-5060 B | with active system 770-5060 B |
Out of stock
—
|
Specifications
Specifications
| Isolation | dynamic 0.7 Hz to 200 Hz, mainly passive at higher frequencies, although for good stability the feedback is active to at least 2 kHz |
| Transmissibility | See curve. Above 10 Hz transmissibility <0.01 (-40dB) |
| Maximum load | 140 kg |
| Working surface | 500x600 mm |
| Self - weight | 23 kg |
Normal Environmental Conditions
| Protection class | IP 20 |
| Temperature range | 5°C - 40°C |
| Relative Humidity | 10 - 90% (5 - 30°C) / 10 - 60% (30 - 40°C) |
| Application | Indoor |
| Altitude | Up to 2000 m (6.500 ft) |
Electrical
| Safety class | 1 |
| Power consumption | maximum 10 W when isolating, maximum 20W during load adjustment |
| Input voltage | 90 – 120V AC, 47 – 63 Hz / 200 – 240V AC, 47 – 63 Hz |
| Fuses | 2x1.6A/250V slow, located in the power socket on the rear side of the unit |
Description
APPLICATIONS:
- Scanning probe microscopy;
- Scanning electron microscopy;
- Scanning near-field optical microscopy / NSOM;
- Control laser microscopy;
- Interferometry;
- Metrology / Profilometry;
- Nano indentation;
- Nano lithography;
- Ultrathin film applications;
- Analytical balances;
- Bio - physical measurement:
- Single molecule investigations;
- Cell micro infection;
- Cell manipulation;
- Patch clamp;
- IVF techniques;

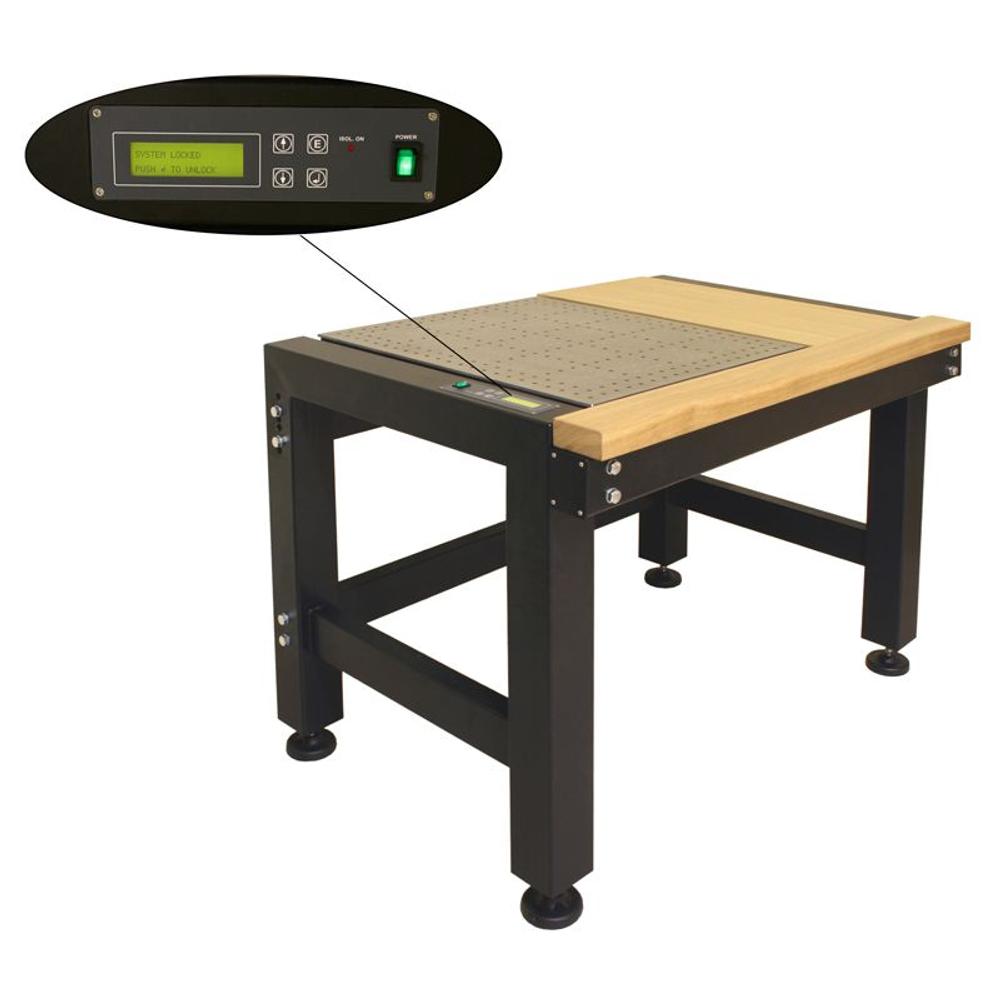

Active Vibration Isolation Workstation comprises of ergonomic rigid frame, guarding armrest and is supplied with three modifications of active vibration isolation system:
- Active Vibration Isolation System 770-5060 with solid surface
- 778-5060 B with Honeycomb Breadboards
- 778-5060 AL with Aluminium Breadbord 715
The control panel is built into the frame and allows comfortable work. This system is extremely convenient to use. Load compensation is performed automatically on switching on the power. If the load is changed whilst the system is isolating, it automatically readjusts and then returns to the isolation mode. The workstation is optimized for such delicate instruments as AFM’s, Laser Scanning Microscopes, SNOM’s, profilometers, nanoindenters, etc.
Upon request we can make custom workstations with working surfaces 400 x 450 mm (maximum load 150 kg) and 600 x 800 mm (maximum load 120 kg). For larger surfaces please see active vibration isolation system Active Vibration Isolation System 776-0200 .
