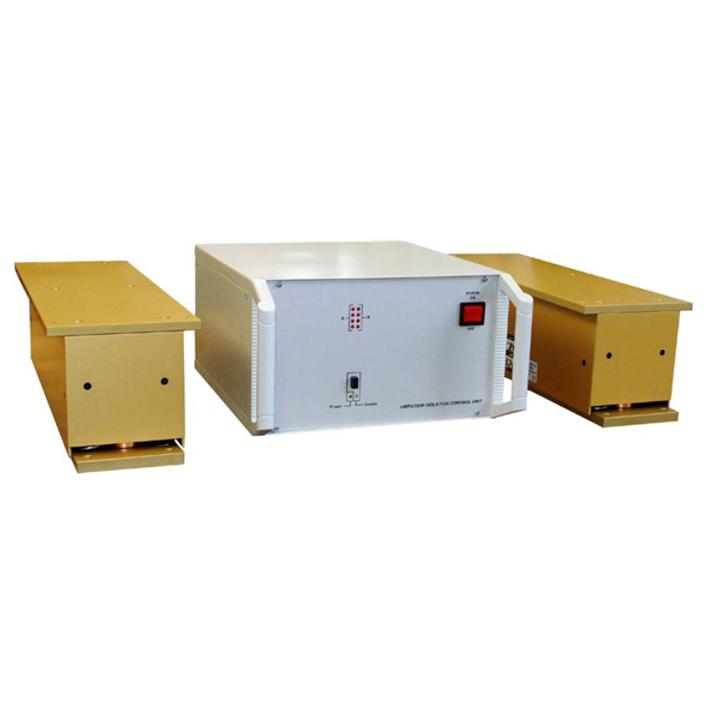

Active Vibration Isolation System 776-0200 SKU: 776-0206
• small size • lack of any low frequency resonance • inherently stiff (500x greater than that of a 1 Hz passive isolator) • rapid recovery time from shock (10 ms) • no air required; no set up time & calibration necessary • includes all three axis • superior to any passive…
Variant specifications
| Specification | Value |
|---|---|
| Isolating Elements | 6 |
| Single Isolator Size, mm | 360x92x110,5 mm |
| Control Units | 2 |
| Max. Load, kg | 1200 |
Shared product specifications
These specifications apply across the Active Vibration Isolation System 776-0200 product family.
| Isolation | Dynamic 1Hz to 200 Hz, passive beyond 200 Hz |
| Transmissibility | See transmission curve. / Above 10 Hz transmissibility <30-35 dB decreasing rapidly beyond 100 Hz, depending on load |
| Correction forces | Maximal ±8 N vertically, ±4 N horizontally |
| Static Compliance | Approx. 3.4 μm / N vertically, 6.8 μm / N horizontally |
| System noise | Less than 50 nG / vHz from 0.1 - 200 Hz in any direction |
| Static Load | Minimum 0 kg, maximum 200 kg on each element |
| Self-weight | 10 kg (per isolation unit) |
| Control Unit | Control Unit |
| Safety class | 1 |
| Power consumption | Typically 7 W, maximum 9 W |
| Input voltage | 110-230 V AC±10%, 50-60 Hz |
| Fuses | 2x1.6 A / 250V slow, located in the power socket on the rear side of the control unit |
| Overload Indication | 8 LEDs |
| Monitor Signal | A multiplexed signal can be used via the BNC-socket at the rear panel of the control unit to display it on an oscilloscope. It shows the vibration levels with and without isolation |
| Top | Top |
| Size | The units should be arranged parallel to each other and may be spaced any distance from each other provided that the top plate is sufficiently rigid. The width of the top plate should not be more than about 1.5 times the length of the isolation units |
| Material | Solid aluminium 20-30 mm thick or honeycomb material |
