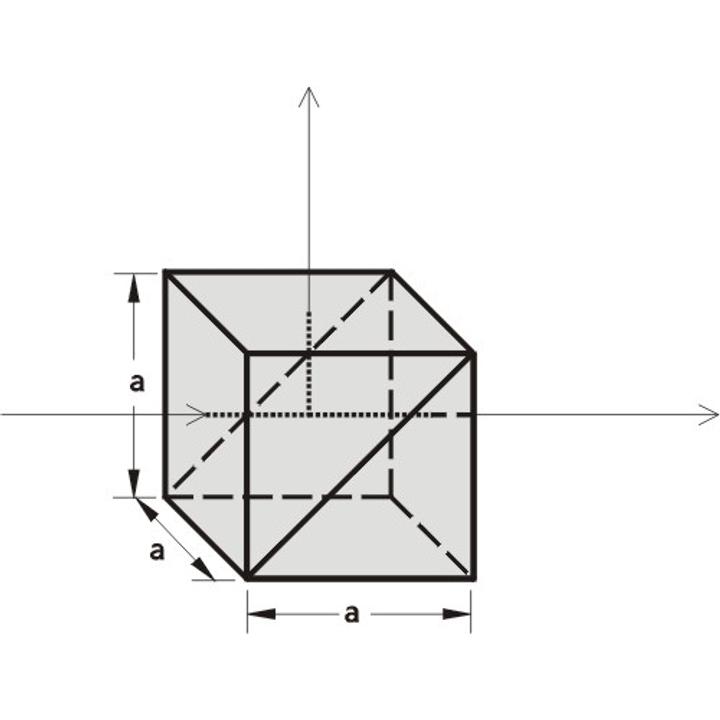

Non-Polarizing Broadband Cube Beamsplitters SKU: 351-0157-M2P
• Made from BK7 • Cemented for low power applications • Typical damage threshold: >0.1 J/cm², 10 Hz at 1064 nm • Broadband anti-reflection coated: R<1% @ 450-700 nm or R<1% @ 750-1100 nm Non-polarizing cube beamsplitters are made of two right angle prisms cemented…
Variant specifications
| Specification | Value |
|---|---|
| Material | BK7 |
| Size, mm | 15 x 15 mm |
| Wavelength | 450-700 nm |
Shared product specifications
These specifications apply across the Non-Polarizing Broadband Cube Beamsplitters product family.
| Material | BK7 |
| Size tolerance | ±0.25 mm |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | 80% of the face size |
| Surface flatness | λ / 4 @ 633 nm |
| Beam deviation | <5 arcmin |
| Absorption | <10% |
| Reflection / Transmission Ratio | 50 / 50 ± 5% |
| Transmission | Tp = Ts = 45 ± 5% |
