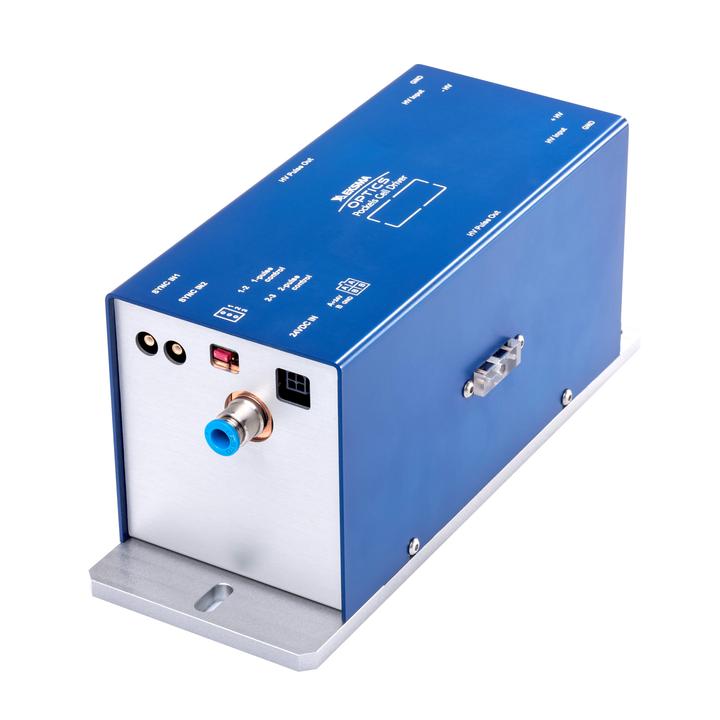

Pockels Cell Drivers For Up to 6 MHz Repetition Rate (≤6 MHz, ≤3.1 kV) SKU: 2DP-2000-1.6-Al

2DP/DPB3 series Pockels cell drivers can operate with highest possible repetition rates among all the Pockels cells drivers offered by Eksma Optics. These drivers can be used for a single pulse selection in the pulse picker applications for high repetition rate lasers. …

Variant specifications

Specification	Value
MAX. HV OPERATING VOLTAGE	1.6 kV
MAX. HV REPETITION RATE	2 MHz

Shared product specifications

These specifications apply across the Pockels Cell Drivers For Up to 6 MHz Repetition Rate (≤6 MHz, ≤3.1 kV) product family.

	2DP-1000-2.4-Al	2DP-2000-1.6-Al	DPB3-2500-3.1-Al	DPB3-3000-2.6-Al
Maximal HV operating voltage	2.4 kV	1.6 kV	3.1 kV	2.6 kV
Maximal HV repetition rate	1 MHz	2 MHz	2.5 MHz	3 MHz
Pulse duration	0 - 5000 ns	0 - 5000 ns	100 - 5000 ns	100 - 5000 ns
HV pulse rise time, typical	<6.5 ns	<6 ns	<10 ns	<8.5 ns
HV pulse fall time, typical	<6.5 ns	<6 ns	<10 ns	<8.5 ns
Output polarity	Positive	Positive	Bipolar	Bipolar
HV power consumption	<180 W	<130 W	<360 W	<325 W
24 V power consumption	<14 W	<18 W	<10 W	<10 W
Cooling	Water	Water	Water	Water

	2DPB3-4000-1.7-Al	2DPB3-6000-1.3-Al
Maximal HV operating voltage	1.7 kV	1.3 kV
Maximal HV repetition rate	4 MHz	6 MHz
Pulse duration	0 - 5000 ns	0 - 5000 ns
HV pulse rise time, typical	<10.5 ns	<9 ns
HV pulse fall time, typical	<10.5 ns	<9 ns
Output polarity	Positive	Positive
HV power consumption	<360 W	<350 W
24 V power consumption	<6 W	<10 W
Cooling	Water	Water
