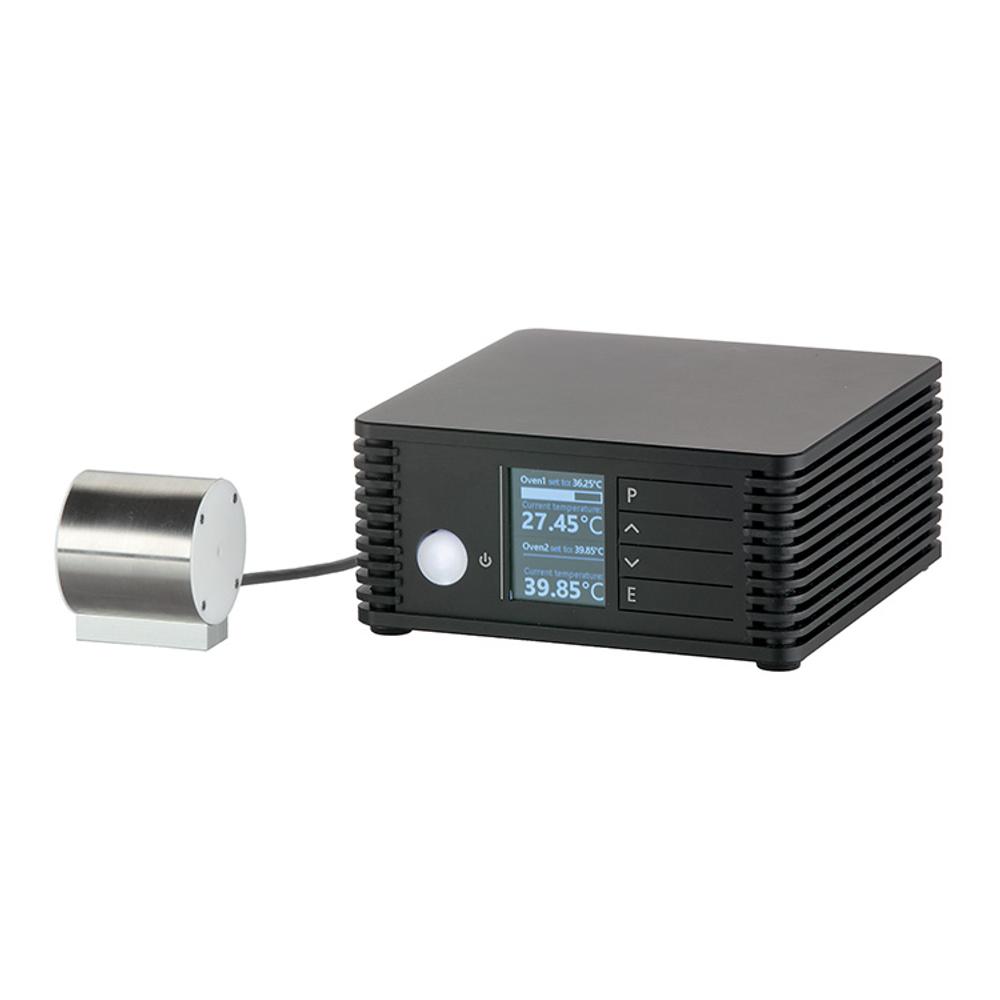

Temperature Controller TC2 with Oven CO1
TC1 and CO1 is high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| AD1 | Spare crystal holder for CO1-30 oven |
Out of stock
—
|
| AD2 | Spare crystal holder for CO1-50 oven |
Out of stock
—
|
| CO1-30-12/12 | Oven for crystal with aperture 12 × 12 mm, length up to 30 mm |
Out of stock
—
|
| CO1-30-6/6 | Oven for crystal with aperture 6 × 6 mm, length up to 30 mm |
Out of stock
—
|
| CO1-30-y/z | Oven for custom crystal sizes |
Out of stock
—
|
| CO1-30S-y/y | Sealed oven (indicate operation wavelength when ordering), standard crystal sizes |
Out of stock
—
|
| CO1-50-12/12 | Oven for crystal with aperture 12 × 12 mm, length up to 50 mm |
Out of stock
—
|
| CO1-50-3/3 | Oven for crystal with aperture 3 × 3 mm, length up to 50 mm |
Out of stock
—
|
| CO1-50-4/4 | Oven for crystal with aperture 4 × 4 mm, length up to 50 mm |
Out of stock
—
|
| CO1-50-5/5 | Oven for crystal with aperture 5 × 5 mm, length up to 50 mm |
Out of stock
—
|
| CO1-50-6/6 | Oven for crystal with aperture 6 × 6 mm, length up to 50 mm |
Out of stock
—
|
| CO1-50-y/z | Oven for custom crystal sizes |
Out of stock
—
|
| CO1-50S-y/y | Sealed oven (indicate operation wavelength when ordering), standard crystal sizes |
Out of stock
—
|
| TC2 | Temperature controller |
Out of stock
—
|
Specifications
Specifications
| SPECIFICATIONS | TC2 + CO1-30 | TC2 + CO1-50 |
|---|---|---|
| Quantity of ovens possible to connect to one controller TC2 | 2 | 2 |
| Temperature tuning range | RT-200°C | RT-200°C |
| Maximum crystals dimensions | 12 x 12 x 30 mm | 12 x 12 x 50 mm |
| Temperature turning step | ± 0.05 °C | ± 0.05 °C |
| Accuracy | ± 0.5 °C | ± 0.5 °C |
| Long-term stability | ± 0.05 °C | ± 0.05 °C |
| Control interfaces | LAN, USB | LAN, USB |
| Powering requirements | 90 – 264 V, 47 – 63 Hz | 90 – 264 V, 47 – 63 Hz |
| Power consumption | < 50 W | < 50 W |
| Dimensions | Ø52×52 mm | Ø52×72 mm |
Description
TC1 and CO1 is high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough RS232 computer interface it can be controlled from personal computer. Actual crystal temperature is shown on LED display. The nonlinear crystal is mounted into adapter before insertion into oven CO1. Such design facilitates handling and replacement of the crystal. The nonlinear crystal can be sealed with fused silica windows in order to provide extra protection. The standard adapters are 15, 30 and 50 mm. length with apertures of 3x3, 4x4, 5x5, 6x6 mm size. Customized adapters for crystals up to 12x12 mm size are available. In addition, adapters for Brewster-cut and PPLN crystals are available too.
Specifications are subject to changes without advance notice.
