Germanium (Ge) Components

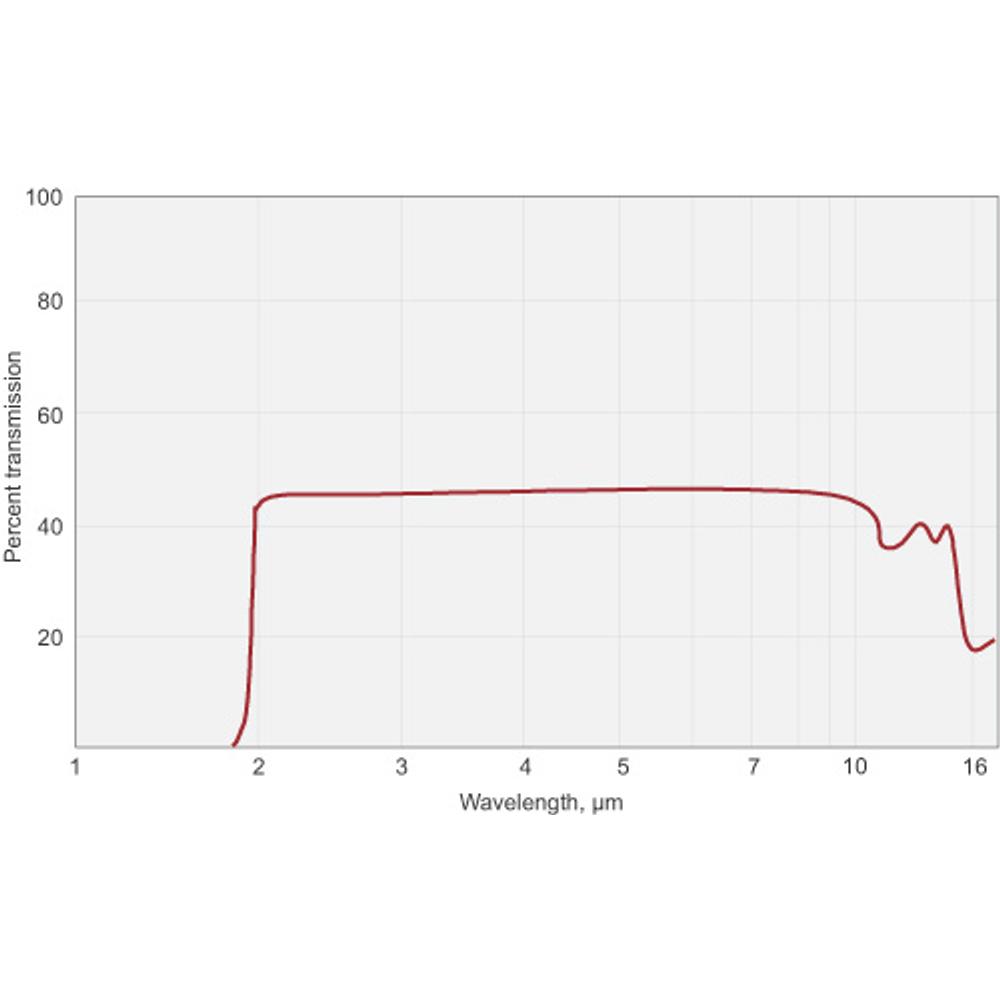

wide IR transmission range covering 1.8-16 µm opaque in visible range Germanium (Ge) based optical components are widely used for IR applications. Germanium (Ge) is well suited for manufacturing of windows and lenses… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Diameter · Thickness · Coating | |
|---|---|---|
| 580-6023 | ø 25.4 mm·3.0 mm·uncoated |
3 in stock
Ships in: 2–5 calendar days
—
|
| 580-6034 | ø 38.1 mm·4.0 mm·uncoated |
4 in stock
Ships in: 2–5 calendar days
—
|
| 580-6055 | ø 50.8 mm·5.0 mm·uncoated |
2 in stock
Ships in: 2–5 calendar days
—
|
| 580-6123 | ø 25.4 mm·3.0 mm·AR/AR@10.6 µm |
Out of stock
Ships in: 58–61 calendar days
$223
|
| 580-6134 | ø 38.1 mm·4.0 mm·AR/AR@10.6 µm |
Out of stock
Ships in: 58–61 calendar days
$315
|
| 580-6155 | ø 50.8 mm·5.0 mm·AR/AR@10.6 µm |
Out of stock
Ships in: 58–61 calendar days
$433
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Material | Ge |
| Surface quality | 60-40 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | 80% of diameter |
| Diameter tolerance | +0.0 -0.1 mm |
| Thickness tolerance | ±0.2 mm |
| Parallelism | <3 arcmin |
| Flatness | <1.5 λ per inch @ 633 nm |
Physical Properties
| Crystal type | cubic |
| Density, g/cm3 | 5.33 |
| Melting point, °C | 937 |
| Refractive index @ 10.6 µm | n = 4.0034 |
| Transmission band, µm | 1.8-17 |
| Lattice constant, Å | a = 5.657 |
Description
wide IR transmission range covering 1.8-16 µm opaque in visible range Germanium (Ge) based optical components are widely used for IR applications. Germanium (Ge) is well suited for manufacturing of windows and lenses for IR applications in lasers and optical systems. Ge components are used with AR coatings because of high surface reflectivity of substrate. The high refractive index ensures an exceptional single wavelength performance for a best "best form" singlet constructed from germanium.
