KTP Pockels Cells with High Contrast Ratio VCR>1:500
4 May 2015
Applications:
Q-switching of high repetition rate lasers at 1 kHz - 1 MHz
Pulse picking
Features:
λ/2 operation with much lower voltage comparing to DKDP or BBO Pockels cells
Typical half-wave operation voltage is <1.8 kV for 3.5 mm diameter clear aperture cell
Stable non-drifting contrast operation at high duty cycles
Very low piezo-electric resonances
Standard available apertures: 4x4, 6x6 and 8x8 mm

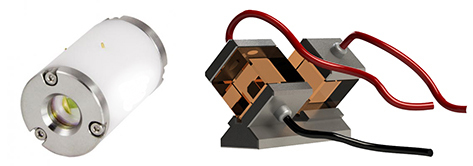

Supplied as hermetically sealed cells with flat windows for operation in ordinary (not clean) environment or in open X-shape holder for operation in clean environment
