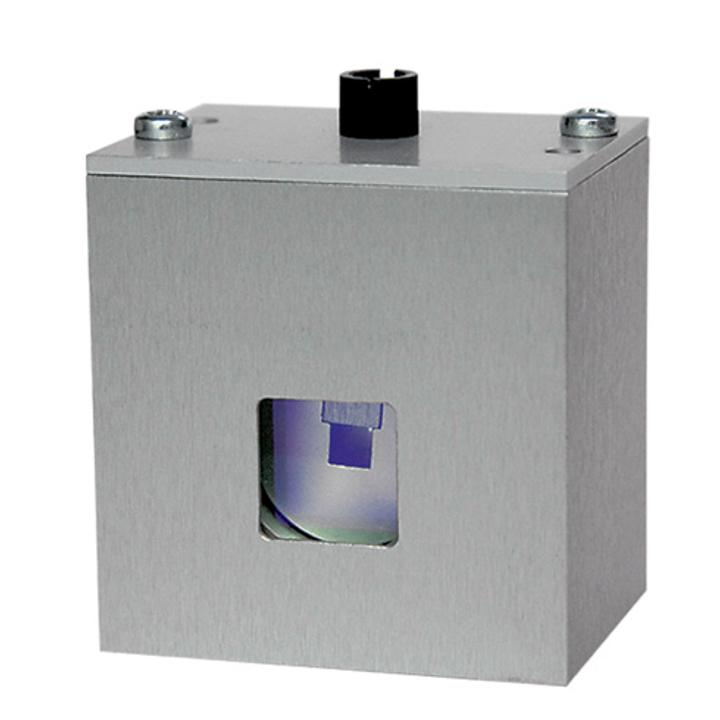

Oven for Nonlinear Crystals CH7 SKU: PS-12-CH7
CH7 is a compact oven with build-in thermocontroller for temperature up to 60 °C. CH7 oven provides more crystal mounting options in comparison with CH3 or CH4. Like in CO1, each crystal is mounted into adapter before insertion in oven. CH7 and CO1 crystal adapters are…
Variant specifications
| Specification | Value |
|---|---|
| Description, features | 100-240 VAC mains, +12 VDC output |
Shared product specifications
These specifications apply across the Oven for Nonlinear Crystals CH7 product family.
Specifications
| Model | CH7-15 | CH7-30 |
|---|---|---|
| Temperature tuning range near preset | ± 5 °C | ± 5 °C |
| Maximum crystals dimensions | 15x15x15 mm | 15x15x30 mm |
| Sealing (optional) | FS windows | FS windows |
| Preset temperature | 30-60 (80) °C | 30-60 (80) °C |
| Long-term stability | ± 0.2 °C | ± 0.2 °C |
| Temperature OK output signal | Present | Present |
| Powering requirements | 12-15 V DC | 12-15 V DC |
| Power consumption | 6 W | 6 W |
| Sensor type | NTC Thermo resistor | NTC Thermo resistor |
| Output connector | Binder 719, 3 pin | Binder 719, 3 pin |
| Dimensions, WxHxD | 48x50x44, mm | 48x50x56, mm |
