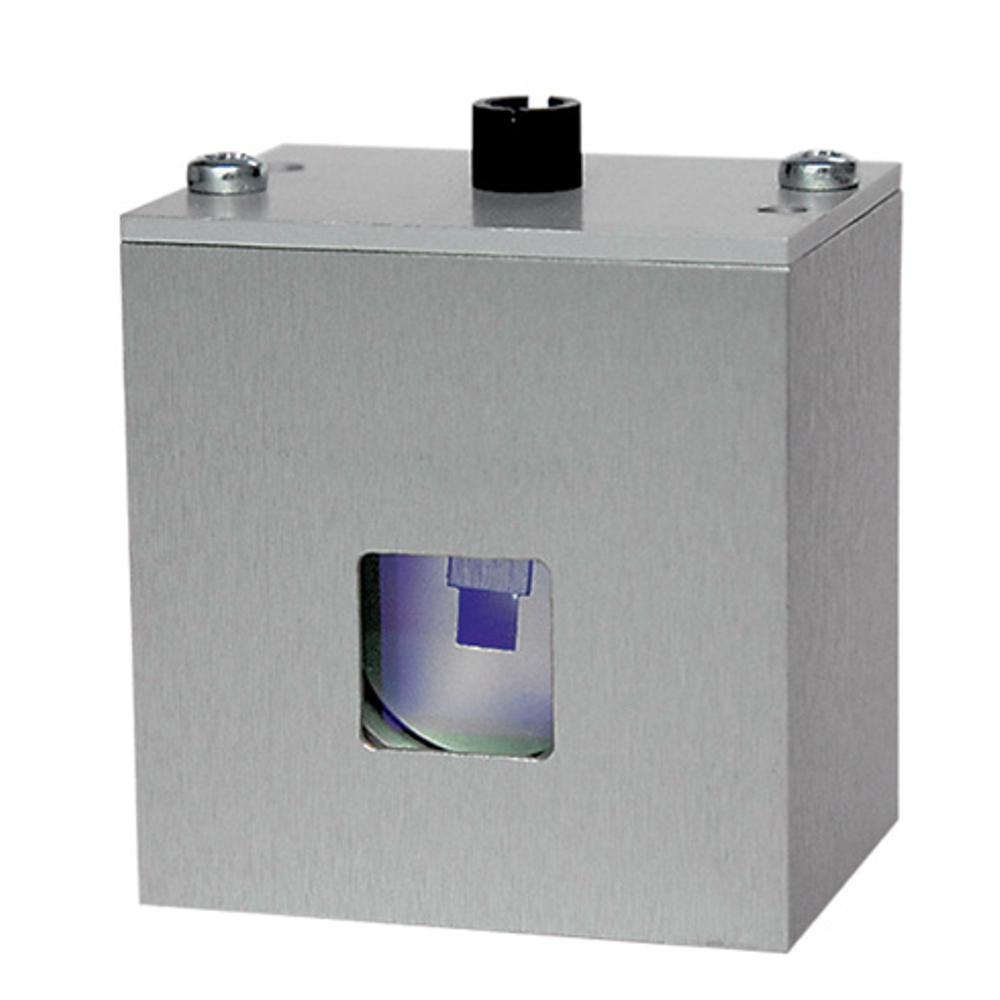

Oven for Nonlinear Crystals CH7
CH7 is a compact oven with build-in thermocontroller for temperature up to 60 °C. CH7 oven provides more crystal mounting options in comparison with CH3 or CH4. Like in CO1, each crystal is mounted into adapter before… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Description, features | |
|---|---|---|
| CH7-15-y/y-80 | Version for temperature up to 80° C |
Out of stock
Ships in: 62–65 calendar days
$683
|
| CH7-15-y/y-x | Standard crystal sizes* |
Out of stock
Ships in: 62–65 calendar days
$605
|
| CH7-15-y/z-x | Non-standard crystal sizes |
Out of stock
Ships in: 62–65 calendar days
$665
|
| CH7-20-y/y-80 | Version for temperature up to 80° C |
Out of stock
Ships in: 62–65 calendar days
$1,259
|
| CH7-20-y/y-x | Fixed temperature in RT-60 |
Out of stock
Ships in: 62–65 calendar days
$1,186
|
| CH7-30-y/y-80 | Version for temperature up to 80° C |
Out of stock
Ships in: 62–65 calendar days
$771
|
| CH7-30-y/y-x | Standard crystal sizes* |
Out of stock
Ships in: 62–65 calendar days
$698
|
| CH7-30-y/z-x | Non-standard crystal sizes |
Out of stock
Ships in: 62–65 calendar days
$757
|
| PS-12-CH7 | 100-240 VAC mains, +12 VDC output |
Out of stock
Ships in: 62–65 calendar days
$75
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Model | CH7-15 | CH7-30 |
|---|---|---|
| Temperature tuning range near preset | ± 5 °C | ± 5 °C |
| Maximum crystals dimensions | 15x15x15 mm | 15x15x30 mm |
| Sealing (optional) | FS windows | FS windows |
| Preset temperature | 30-60 (80) °C | 30-60 (80) °C |
| Long-term stability | ± 0.2 °C | ± 0.2 °C |
| Temperature OK output signal | Present | Present |
| Powering requirements | 12-15 V DC | 12-15 V DC |
| Power consumption | 6 W | 6 W |
| Sensor type | NTC Thermo resistor | NTC Thermo resistor |
| Output connector | Binder 719, 3 pin | Binder 719, 3 pin |
| Dimensions, WxHxD | 48x50x44, mm | 48x50x56, mm |
Description
CH7 is a compact oven with build-in thermocontroller for temperature up to 60 °C. CH7 oven provides more crystal mounting options in comparison with CH3 or CH4. Like in CO1, each crystal is mounted into adapter before insertion in oven. CH7 and CO1 crystal adapters are compatible. Maximum crystal size for this model is 12x12 mm. and the length of the crystal - 30 mm.
The pre-set temperature can be adjusted in ±5°C range by the help of potentiometer. The current temperature is not indicated. CH7 has “temperature ready” signal, changing state when pre-set temperature is reached. For additional protection of crystal surfaces from the dust or other contamination, we offer CH7-20 model – windowed version of CH7 oven.
Specifications are subject to changes without advance notice.
