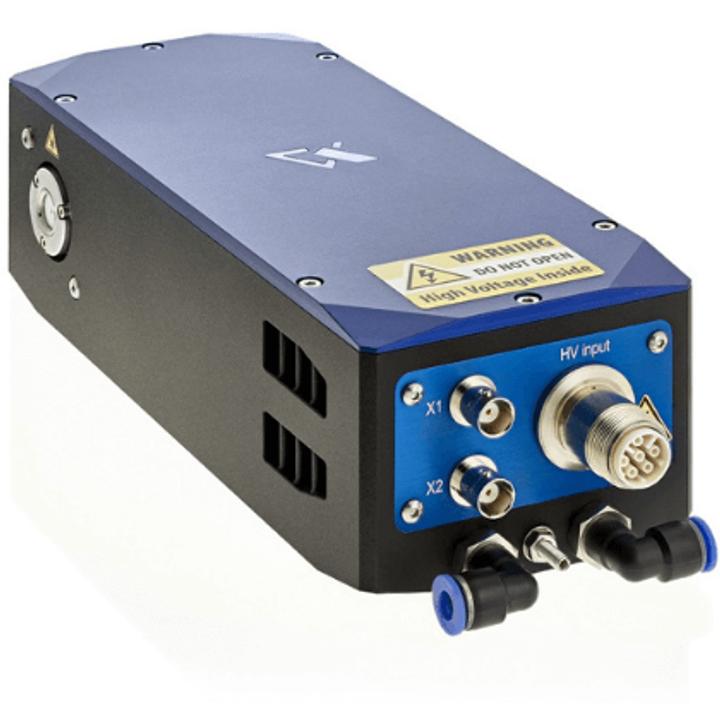

Pulse Picker MP1 SKU: MP1-BBO-5.8

Pulse picker MP1 consists of built-in fast driver and a Pockels cell. This unit is able to select pulses at up to 1 MHz rate. MP1 is operated by pMaster 4.2 timing generator which provides sync pulses for driver control and has a built-in power supply. MP1 can be synchronized…

Variant specifications

Specification	Value
Description	With BBO clear aperture Ø 5.8 mm, λ/4 operation at 1064 nm
Group	Pulse Pickers for up to 1 MHz Operating Rate

Shared product specifications

These specifications apply across the Pulse Picker MP1 product family.

Specifications of Digital synchronization and delay pulse generator pMaster 4.2

Control modes	Internal pulse generator, External trigger, External RF source
INTERNAL PULSE GENERATOR	INTERNAL PULSE GENERATOR
Operation modes	Single shot, burst, normal
Delay range	1.1 ns to 140 ms
Resolution	100 ps
Accuracy	25 ps + 0.000001 x delay
Time base	100 MHz, 0.2 ppm
RMS jitter	<100 ps
Channel to channel jitter	<30 ps
EXTERNAL SYNCHRONIZATION	EXTERNAL SYNCHRONIZATION
Synchronization source	External trigger, SYNC IN input
Rate	1 Hz to 20 MHz
Min pulse width	10 ns
Threshold	1.3 V
Input level	LVTTL, tolerates 5 V
Impedance	0.2 mA pulldown
Slope	rising
EXTERNAL RF SOURCE, CLK IN INPUT	EXTERNAL RF SOURCE, CLK IN INPUT
Rate	10 MHz – 100 MHz
Min pulse width	300 ps
Input level	0.5 V to 3.3 V
Impedance	50 Ω
OUTPUTS	OUTPUTS
Output level	4.5 V
Output impedance	50 Ω
COMMUNICATION, POWERING, PHYSICAL SPECIFICATIONS	COMMUNICATION, POWERING, PHYSICAL SPECIFICATIONS
Communication	USB
Power	230 V AC 50 Hz or 110 V AC 60 Hz
Dimensions W x D x H, mm	482 x 387 x 88 mm
Weight netto (including cables)	6.6 kg

Samples of suggested MP1 pulse picker configurations

Pulse picker	MP1-BBO-2.5	MP1-BBO-5.8	MP1-DKDP-11	MP1-FAM-KTP-5.5
Biult-in-drive, max operating rate	up to 1 MHz	up to 250 kHz	up to 5 kHz	up to 500 kHz
Max laser repetition rate for single pulse picking	60 MHz	60 MHz	40 MHz	10 MHz	10 MHz	10 MHz
HV power supply	provided in pMaser 4.2	provided in pMaser 4.2	provided in pMaser 4.2	provided in pMaser 4.2
Operation	Quarter wave, λ / 4	Quarter wave, λ / 4	Quarter wave, λ / 4	0 to λ / 2	0 to λ / 2	0 to λ / 2
HV pulse duration	15-250 ns	15-1250 ns	30-3000 ns	70-1000 ns
HV pulse rise time, typical	<7 ns	<8 ns	<9 ns	< 26 ns
HV pulse fall time, typical	<7 ns	<8 ns	<9 ns	< 13 ns
Pockels cell contrast ratio, VCR	>1:500	>1:500	>1:500	>1:500
Pockels cell transmission	>98% at 1064 nm	>98% at 1064 nm	>97% at 1064 nm	> 98 % at 1064 nm
Clear aperture	Dia 2.5 mm	Dia 5.8 mm	Dia 11 mm	Dia 5.5 mm
Cooling	Water	Water	Conductive	Water
Dimensions L x W x H, mm	230 x 90 x 69 mm	230 x 90 x 69 mm	230 x 90 x 69 mm	230 x 90 x 69 mm
