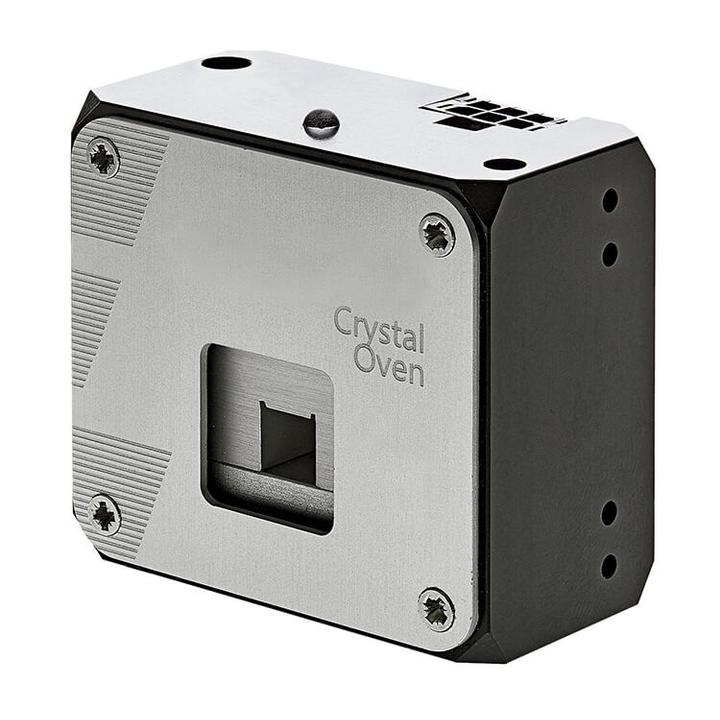

Oven for Nonlinear Crystals CH8 SKU: CH8-20-y/y-PS
CH8 is a compact oven with built-in thermocontroller for nonlinear crystals to keep them at stabilized temperature in the range from 30°C to 80°C. It is ideal for mounting of larger aperture crystals like KD*P. CH8 ovens come in three sizes, depending on crystal length: CH8-20…
Variant specifications
| Specification | Value |
|---|---|
| Description | Oven (crystal length up to 20 mm) with power supply |
Shared product specifications
These specifications apply across the Oven for Nonlinear Crystals CH8 product family.
Specifications
| Model | CH8-20 | CH8-30 | CH8-50 |
|---|---|---|---|
| Maximum crystals dimensions | 15 x 15 x 20 mm | 15 x 15 x 30 mm | 15 x 15 x 50 mm |
| Preset temperature | 30-80 °C | 30-80 °C | 30-80 °C |
| Temperature stability | better than ± 0.05 °C | better than ± 0.05 °C | better than ± 0.05 °C |
| Power consumption | <6 W | <6 W | <9 W |
| Control interface | CAN | CAN | CAN |
| Crystal center position above pad | 16 mm | 16 mm | 16 mm |
| Dimensions, W×H×D | 48 x 44 x 26 mm | 48 x 44 x 36 mm | 48 x 44 x 56 mm |
