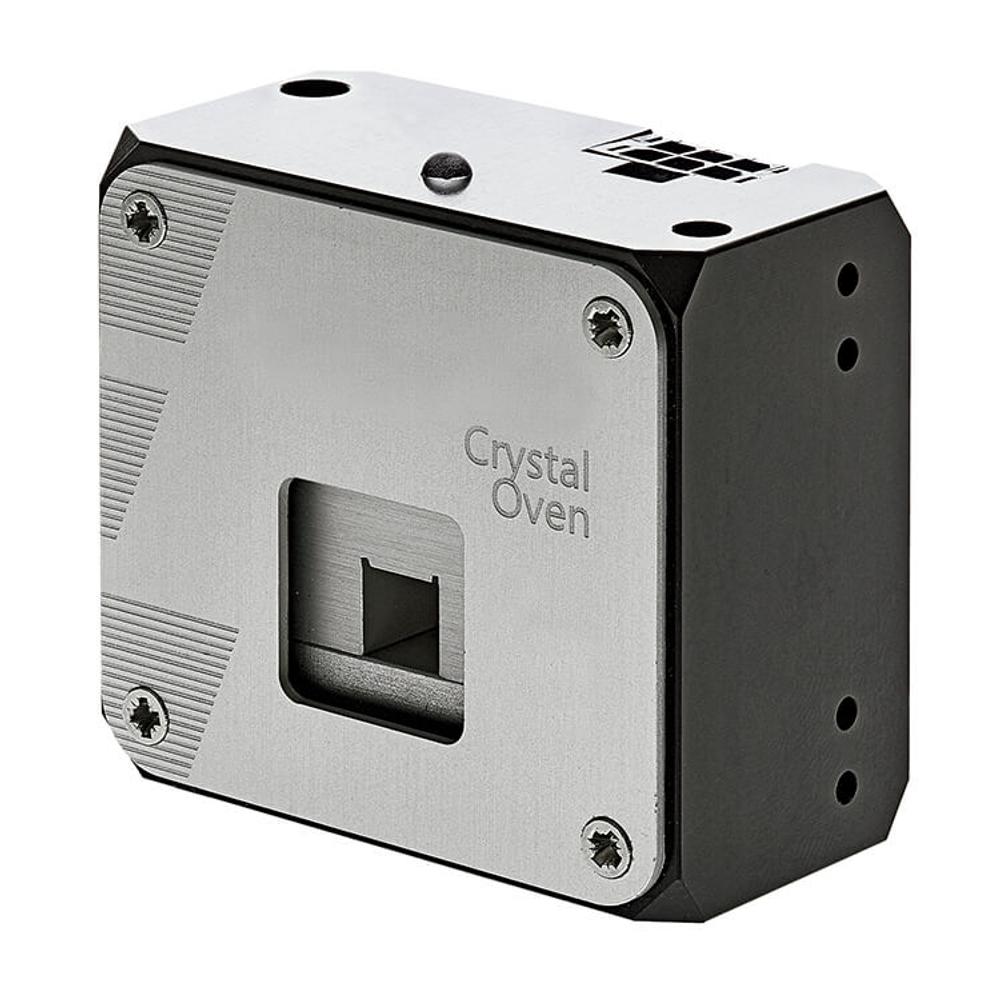

Oven for Nonlinear Crystals CH8
CH8 is a compact oven with built-in thermocontroller for nonlinear crystals to keep them at stabilized temperature in the range from 30°C to 80°C. It is ideal for mounting of larger aperture crystals like KD*P. CH8… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Order
| SKU | Description | |
|---|---|---|
| CH8-20-y/y-CAN | Oven (crystal length up to 20 mm) with CAN-USB converter and power supply |
Out of stock
Ships in: 62–65 calendar days
$985
|
| CH8-20-y/y-PS | Oven (crystal length up to 20 mm) with power supply |
Out of stock
Ships in: 62–65 calendar days
$593
|
| CH8-30-y/y-CAN | Oven (crystal length up to 30 mm) with CAN-USB converter and power supply |
Out of stock
Ships in: 62–65 calendar days
$1,054
|
| CH8-30-y/y-PS | Oven (crystal length up to 30 mm) with power supply |
Out of stock
Ships in: 62–65 calendar days
$658
|
| CH8-50-y/y-CAN | Oven (crystal length up to 50 mm) with CAN-USB converter and power supply |
Out of stock
Ships in: 62–65 calendar days
$1,133
|
| CH8-50-y/y-PS | Oven (crystal length up to 50 mm) with power supply |
Out of stock
Ships in: 62–65 calendar days
$740
|
Specifications
Specifications
| Model | CH8-20 | CH8-30 | CH8-50 |
|---|---|---|---|
| Maximum crystals dimensions | 15 x 15 x 20 mm | 15 x 15 x 30 mm | 15 x 15 x 50 mm |
| Preset temperature | 30-80 °C | 30-80 °C | 30-80 °C |
| Temperature stability | better than ± 0.05 °C | better than ± 0.05 °C | better than ± 0.05 °C |
| Power consumption | <6 W | <6 W | <9 W |
| Control interface | CAN | CAN | CAN |
| Crystal center position above pad | 16 mm | 16 mm | 16 mm |
| Dimensions, W×H×D | 48 x 44 x 26 mm | 48 x 44 x 36 mm | 48 x 44 x 56 mm |
Description
CH8 is a compact oven with built-in thermocontroller for nonlinear crystals to keep them at stabilized temperature in the range from 30°C to 80°C. It is ideal for mounting of larger aperture crystals like KD*P.
CH8 ovens come in three sizes, depending on crystal length: CH8-20 for crystals up to 20 mm, CH8-30 for crystals up to 30 mm and CH8-50 for crystals up to 50 mm. CH8 ovens can accept crystals with apertures up to 15 x 15 mm. Each oven is made exactly for specific crystal aperture size, therefore it cannot be used for crystals of different size. Exact size of the crystal must be noted when ordering.
We offer CH8 ovens in two models:
- Ovens with temperature preset at the factory (temperature must be specified before ordering)
- Ovens with adjustable temperature control (via CAN-USB converter)
Specifications are subject to changes without advance notice.
