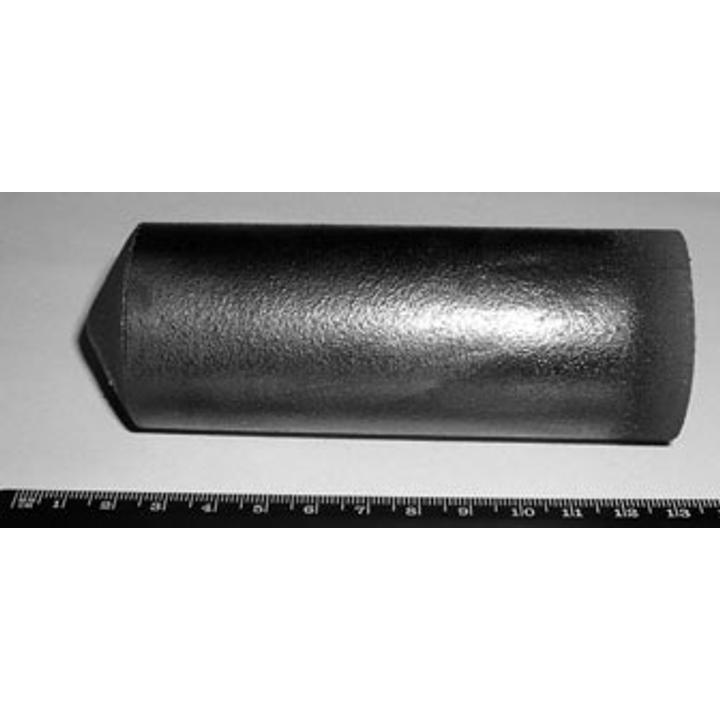

Cadmium Selenide - CdSe Crystals SKU: CdSe-0921-05
Coherent sources in the mid-IR domain have potential applications in molecular spectroscopy, biomedicine, and remote sensing. Laser systems with CdSe crystal have obvious advantage – much broader tuning range [1-3]. In the difference-mixing of the output of parametric oscillator…
Variant specifications
| Specification | Value |
|---|---|
| Size | dia5x5 mm |
| Resistivity | high resistivity (3E11 Ohm'cm) |
| Orientation | <0001> |
Shared product specifications
These specifications apply across the Cadmium Selenide - CdSe Crystals product family.
Specifications
| Structure: | Wurtzite (Hexagonal) |
| Density: | 5.81 g/ cm3 |
| Young’s Modulus: | 5×1011 dyne/cm2 |
| Coef. of Thermal Expansion (500 K): | α 1=6.26×10-6/K; α 3=4.28×10-6/K |
| Specific Heat: | 0.49 J/gK |
| Thermal conductivity (at 25 °C): | 0.04 W/cmK |
| Max. Transmittance (λ =2.5-15 μm): | ≥ 71 % |
| Absorption Coef. (λ =10.6 μm): | ≤ 0.0015 cm-1 (including 2 surfaces) |
| Refractive index (λ =10.6 μm): | no= 2.4258, ne=2.4437 |
| Max. single crystal diameter/length: | Ø50.8×40 mm |
| Max. IR optic blank diameter/length: | Ø50×50 mm or plate 60×60×6 mm |
| Surface quality: | As-cut, 60/40 scratch*dig per MIL-0-13830 |
