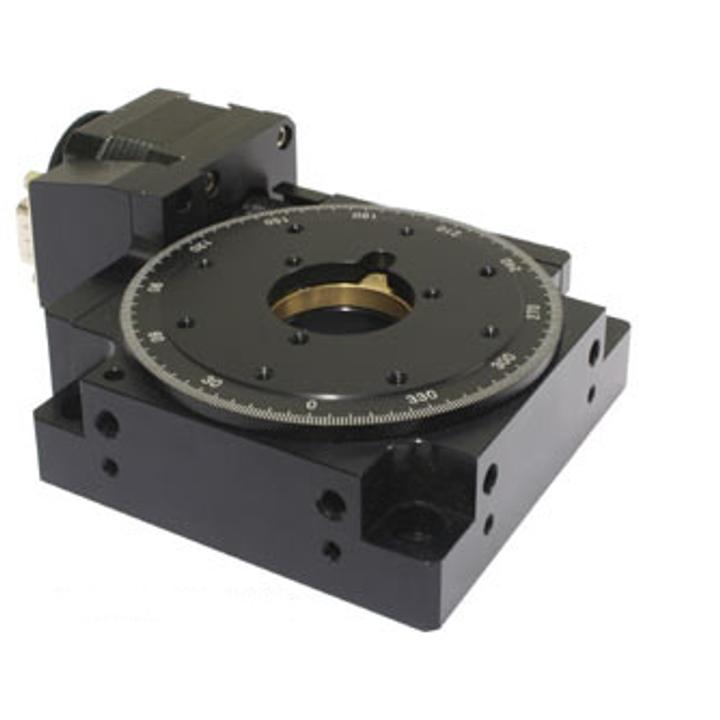

Motorized Rotation Stages 960-0150 SKU: 960-0150SM
• 360° rotation graduated in 1° • Three types of platform: - platform without big central hole (960-0150) - Ø23 mm clear aperture, M27x1 for 1" optics mounting (960-0150-23) - Ø30 mm clear aperture (960-0150-30) • Resolution 4.5 arcsec in 1/8 step • Encoders or Revolution…
Variant specifications
| Specification | Value |
|---|---|
| Description | Rotation stage 960-0150-30 with SM system |
Shared product specifications
These specifications apply across the Motorized Rotation Stages 960-0150 product family.
| Rotation range | 360° |
| Resolution / in full step | 0.6 arcmin / (0.01 °) |
| Max. rotation speed* | 8 turn / min |
| Backlash | 0 µm |
| Wobble | 0.5 arcmin |
| Eccentricity | 10 µm |
| Load capacity: / horizontal / radial / torque | 10 kg / 2 kg / 1 Nm |
