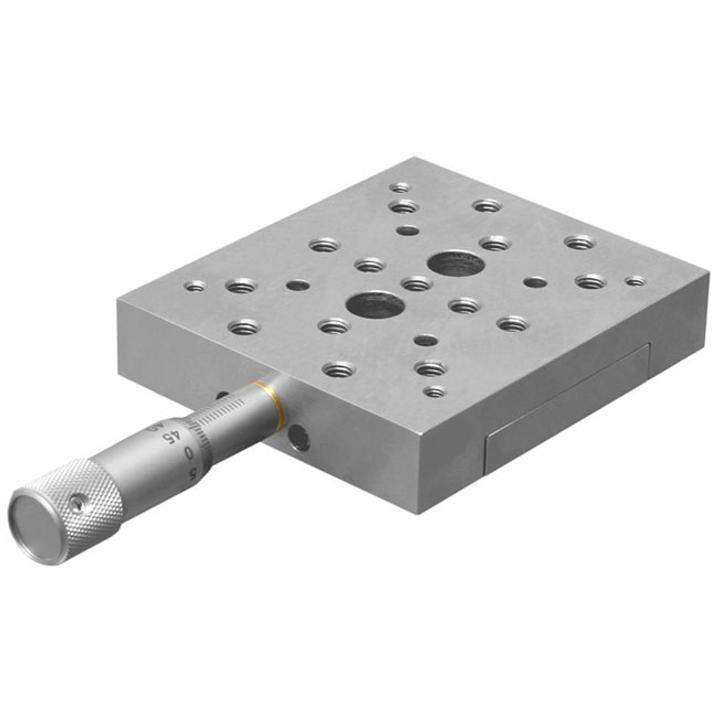

Vacuum Compatible Translation Stage 860-0052V SKU: 860-0052VXYZ
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • For Z axis add 810-0146 angle bracket • Large mounting surface Vacuum Compatible Stable Steel Translation Stages 860-0052V have large mounting surface,…
Shared product specifications
These specifications apply across the Vacuum Compatible Translation Stage 860-0052V product family.
| Travel range | 25 mm |
| Sensitivity | 1 µm |
| Reading accuracy | 10 µm |
| Angular deviation | <200 µrad |
| Tracking accuracy | 2 µm |
| Load capacity: / horizontal / vertical | 20 kg / 5 kg |
| Assemblies X-Y Z | directly / 810-0146 |
Classification
| Type | translation|rotation |
