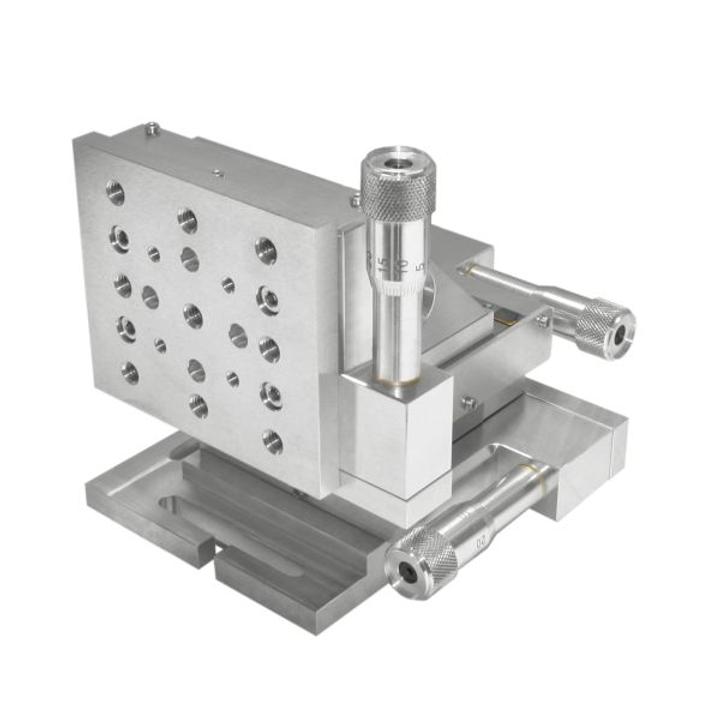

Vacuum Compatible Translation System 860-0051V-XYZ SKU: 860-0051EV-XYZ
• Micrometer drive • High sensitivity • 15mm travel in X, Y and Z axis • Non vacuum version is available 860-0051 XYZ Metric stage assembly consists of 3 pieces of 860-0051V, 2 base plates and 1 connecting plate.
Variant specifications
| Specification | Value |
|---|---|
| Description | inch version |
Shared product specifications
These specifications apply across the Vacuum Compatible Translation System 860-0051V-XYZ product family.
| Travel range | 15 mm |
| Sensitivity | 1 µm |
| Tracking accuracy | 2 µm |
| Scale graduation | 10 µm |
| Load capacity | 5 kg |
Classification
| Type | translation|rotation |
