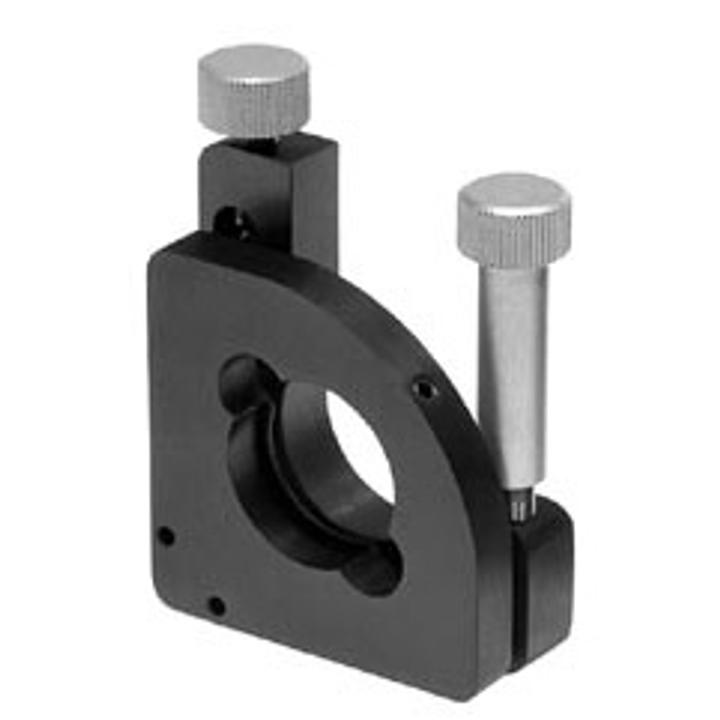

Beamsplitter Mount of Side Drive 840-0191 SKU: 840-0191V
• Most compact dimensions among 1" optics mounts • Both tilt and tip are controlled from aside the optical path • Ideal for dense optical schemes • Fine adjustment screws with 0.25mm pitch • Hardened inserts under adjusters • Original stabilized L-shaped flat spring • Accepts…
Variant specifications
| Specification | Value |
|---|---|
| Description | For optics of ø 25.4 mm. Compatible with 10-6 Torr vacuum. |
| Weight | 0.1 kg |
Shared product specifications
These specifications apply across the Beamsplitter Mount of Side Drive 840-0191 product family.
| Fine screw thread | M6x0.25 |
| Tilt / tip range | ±2° |
| Sensitivity | 3 arcsec |
| Optics accepted: / Diameter / Clear aperture | ø25.4 mm (1'') / 23 mm |
