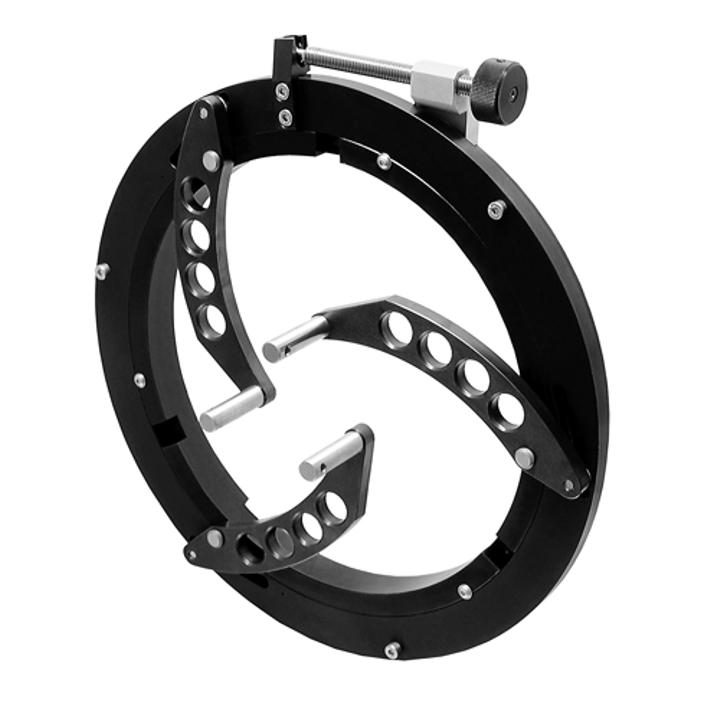

Large Self-Centering Lens/Optics Mounts 830-0027 SKU: 830-0027-08
Self-Centering Optics Mount 830-0027 reliably centres and securely holds round optics and cylindrical objects. This mount is particularly valuable when lenses of different diameters are being used interchangeably and repeated centering at a constant height is necessary. Optical…
Variant specifications
| Specification | Value |
|---|---|
| Description | without base plate |
| Weight | 1.8 kg |
Shared product specifications
These specifications apply across the Large Self-Centering Lens/Optics Mounts 830-0027 product family.
| 830-0027-08 Self-Centering Lens / Optics Mount - Solidworks file / 830-0027-12 Self-Centering Lens / Optics Mount - Solidworks file | |
| 830-0027-08 Self-Centering Lens / Optics Mount - DWG file / 830-0027-12 Self-Centering Lens / Optics Mount - DWG file | |
| 830-0027-08 Self-Centering Lens / Optics Mount - STEP file / 830-0027-12 Self-Centering Lens / Optics Mount - STEP file |
Classification
| Type | optical-mount |
Variant files
Technical drawings, models and data files for SKU 830-0027-08.
Product brochures
Shared documentation for the complete product family.
