DPD Cavity Dumping & Pulse Picking Pockels Cell Drivers
Features: • Fast HV rise/fall time <6-9.5 ns • HV pulse amplitude up to 7 kV • Pulse repetition rate up to 1 MHz • Output pulse jitter <50 ps if trigger pulse rise time <0.5 ns DPD series drivers are designed for… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Max. HV operating voltage · Max. HV repetition rate · Control | |
|---|---|---|
| DPBX-1000-3.8-Al | 3.8 kV·1000 kHz·switchable |
Out of stock
—
|
| DPBX-250-7.0-Al | 7.0 kV·250 kHz·switchable |
Out of stock
—
|
| DPD-1000-1.8 | 1.8 kV·1000 kHz·2 sync pulse |
Out of stock
—
|
| DPD-1000-1.8-Al | 1.8 kV·1000 kHz·2 sync pulse |
Out of stock
—
|
| DPD-1000-2.9-Al | 2.9 kV·1000 kHz·2 sync pulse |
1 in stock
Ships in: 2–5 calendar days
—
|
| DPD-250-3.6-AI | 3.6 kV·250 kHz·2 sync pulse |
Out of stock
—
|
| DPD-250-5.2-Al | 5.2 kV·250 kHz·2 sync pulse |
Out of stock
—
|
| DPD-300-4.6-Al | 4.6 kV·300 kHz·2 sync pulse |
Out of stock
—
|
| DPD-50-3.6 | 3.6 kV·50 kHz·2 sync pulse |
Out of stock
—
|
| DPD-500-2.6 | 2.6 kV·500 kHz·2 sync pulse |
Out of stock
—
|
| DPD-500-2.6-Al | 2.6 kV·500 kHz·2 sync pulse |
Out of stock
—
|
| DPS-1000-1.8 | 1.8 kV·1000 kHz·1 sync pulse |
Out of stock
—
|
| DPS-1000-1.8-Al | 1.8 kV·1000 kHz·1 sync pulse |
Out of stock
—
|
| DPS-1000-2.9-Al | 2.9 kV·1000 kHz·1 sync pulse |
Out of stock
—
|
| DPS-250-3.6-AI | 3.6 kV·250 kHz·1 sync pulse |
Out of stock
—
|
| DPS-250-5.2-Al | 5.2 kV·250 kHz·1 sync pulse |
Out of stock
—
|
| DPS-300-4.6-Al | 4.6 kV·300 kHz·1 sync pulse |
Out of stock
—
|
| DPS-50-3.6 | 3.6 kV·50 kHz·1 sync pulse |
Out of stock
—
|
| DPS-500-2.6 | 2.6 kV·500 kHz·1 sync pulse |
Out of stock
—
|
| DPS-500-2.6-Al | 2.6 kV·500 kHz·1 sync pulse |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
General Specifications for DPS/DPD Series Drivers
| Driver model | DPS/DPD | DPBX |
|---|---|---|
| Maximal HV operating voltage | up to 5.2 kV | up to 7.0 kV |
| HV pulse rise time | <6 - 8.5 ns | <6 - 9.5 ns |
| HV pulse fall time | <6 - 8.5 ns | <6 - 9.5 ns |
| HV pulse duration | 100 - 5000 ns | 100 - 5000 ns |
| HV pulse duration extension using pulse regeneration technique | Yes | Yes |
| Maximal HV pulse repetition rate | up to 1000 kHz | up to 1000 kHz |
| External triggering pulse duration requirement | >100 ns | >100 ns |
| External triggering pulse amplitude requirement | 3-5 V (50 Ω load) | 3-5 V (50 Ω load) |
| External triggering pulse rise & fall time | <20 ns | <20 ns |
| Maximal length of leads to Pockels cells | 10 cm (<5 cm recommended) | 10 cm (<5 cm recommended) |
| Control by triggering (sync) pulses | 1 or 2, fixed | 1 or 2, switchable |
| HV pulse delay | 45 ns | 45 ns |
| External powering requirements: -high voltage supply -low voltage DC supply | - depends on modification -12±0,5V, <150 mA; 14-25 V; <150 mA, on request |
Description
Features:
- Fast HV rise/fall time <6-9.5 ns
- HV pulse amplitude up to 7 kV
- Pulse repetition rate up to 1 MHz
- Output pulse jitter <50 ps if trigger pulse rise time <0.5 ns
DPD series drivers are designed for wide range of applications and operating modes. Repetition rate can be up to 500 kHz for standard range of drivers, up to 1 MHz enhanced and up to 3.5 MHz high rate. Standard range of possible pulse durations is from 100 ns to 5 µs. It can be extended to infinity using pulse regeneration technique. Connection diagram can be PUSH-PULL configuration using stand-alone driver, as well as FULL BRIDGE using two drivers for one Pockels cell. FULL BRIDGE configuration gives such advantages as repetition rate doubling to reach up to 7 MHz rate, pulse duration shortening down to zero or voltage doubling on pockels cell. Contact us for extended information and suggestions for pockels cell driving solutions you need.

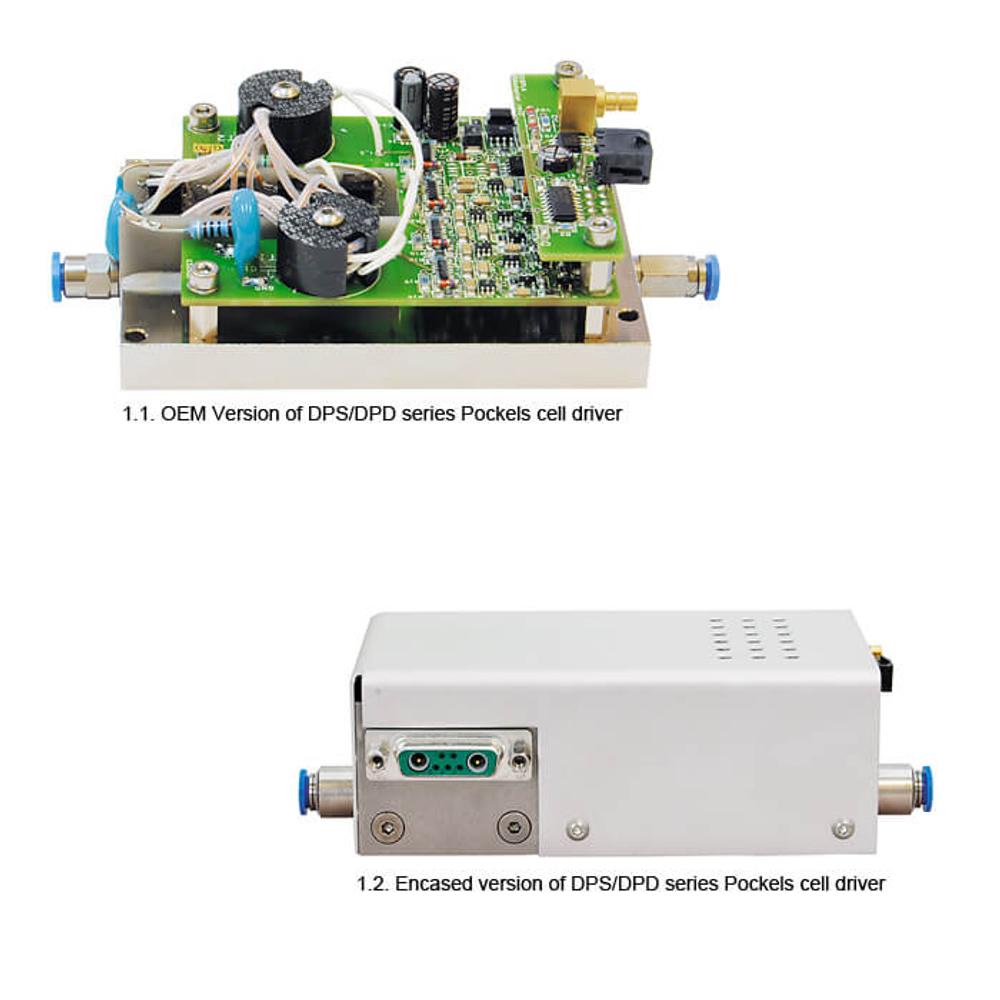

DPS/DPD series units are available in two versions: „open frame“ which is ideal for OEM manufacturers incorporating drivers in their own systems and encased in aluminium housings for researchers. Encasing of Pockels cell driver in aluminium housing solves two problems: shields both humans and electronics from high voltage impact from operating Pockels cell driver, and protects driver itself from potentially harmful external contact – ensuring safe operation and driver longevity. The housed option is especially handy for researchers and custom product manufacturers who use these drivers during their own systems build-up.
Not all combinations of parameters can be possible at the same time. Specifications are given for Pockels cell with capacity <6 pF.
Driver needs to be mounted on the heatsink (excluding water cooled versions). Heat sink temperature needs to be lower than 35°C (95°F) in all regimes of ooperation.
