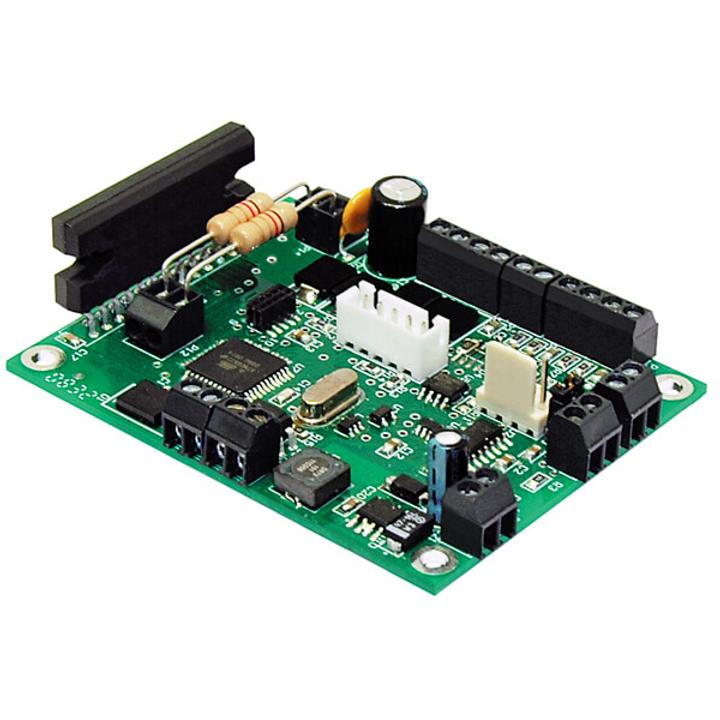

Stepper Motor Controller Card for RS232 Interface 980-0030-RS232 SKU: 980-0030-RS232
980-0030-RS232 controller series has been upgraded to new generation series 980-0040-USB, which is more advanced in every way.
Variant specifications
| Specification | Value |
|---|---|
| Description | Controller Card |
Shared product specifications
These specifications apply across the Stepper Motor Controller Card for RS232 Interface 980-0030-RS232 product family.
Motion
| Resolution: full step, 1/2, 1/4, 1/8 |
| Speed: 2-5000 steps/s |
| Programmable speed and trip points |
| Programmable acceleration and decelaration ramps |
| Soft start/stop mode control |
| Control via RS232 interface |
| 3 button "front panel" control |
| Capable of connecting two programmable limit switches for every axis |
Mechanical
| Operating temperature range: 0 to 70°C |
| RoHS Compliant |
| Box size for 1-axis controller: 90x140x70 mm |
| Box size for 2 and more axis controller: 180x185x90 mm |
| Operating temperature range: 0 to 70°C |
| RoHS Compliant |
| Box size for 1-axis controller: 90x140x70 mm |
| Box size for 2 and more axis controller: 180x185x90 mm |
Electrical
| Targeted for bipolar, two phase stepper motors with a current rating of 0.25A to 1.5A. The current limit value is set by the manufacturer. |
| Power supply voltage ranges from 12V to 36V |
| Synchronization Input and Output |
| Galvanic isolation of Synchronization Input and Output |
Programming
| Serial communications command system for Windows, Linux and most other operating systems. Host is "master" and controllers are addressable "slaves". Programming example included |
| Drivers and dynamic link library for Windows host programming |
| Set of virtual instruments for National LabView |
