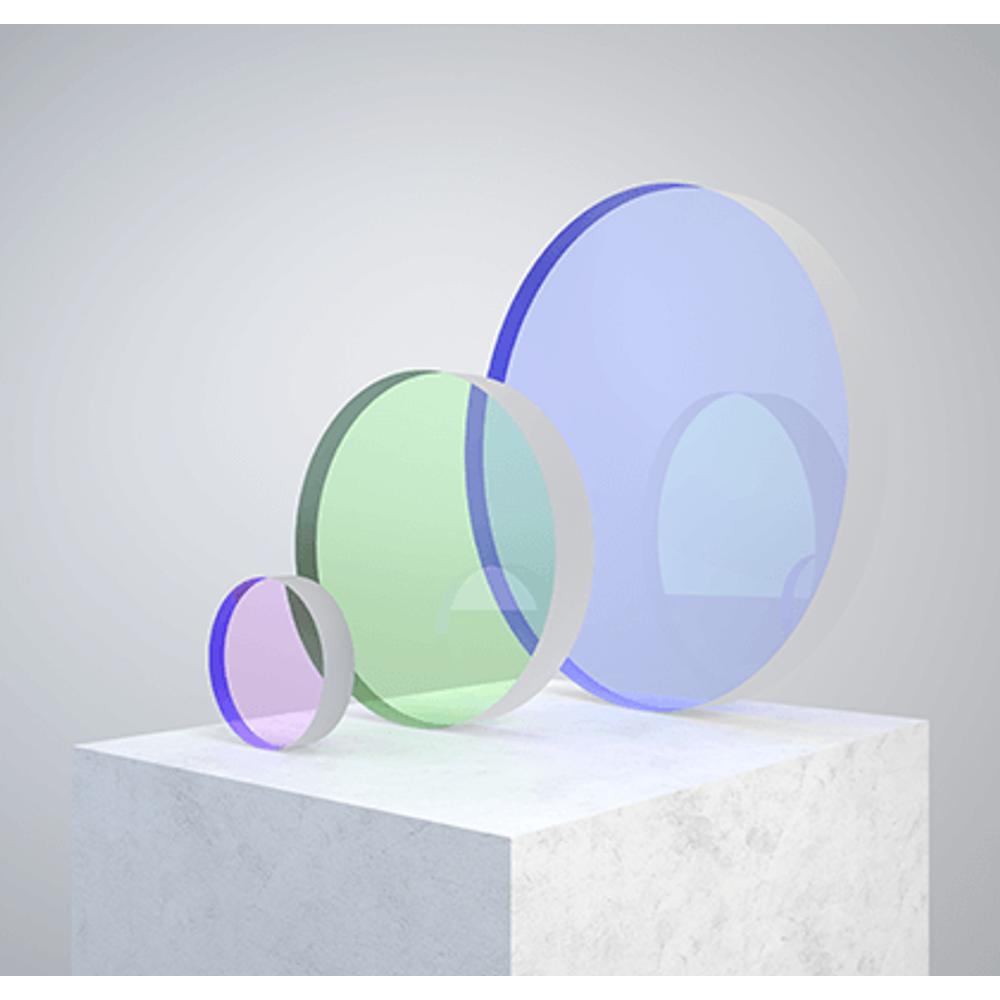

UVFS Round Mirrors

UVFS Round Mirrors
From $47 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Thickness Any
Catalog band: 1.0–25.4
Manufacturable: 1.0–25.4
1.0 25.4
or
Diameter Any
Catalog band: 12.7–152.4
Manufacturable: 12.7–152.4
12.7 152.4
or
48 catalog variants — refine the spec to narrow it down.
SKU Description · Thickness · Diameter
VEI0001661 UVFS flat beamsplitter, d25.4x6mm, SQ 20-10s/d, SF l/10@633nm, parall 30", one side coated PR=50+/-3%@532nm, back side AR<0.25%@532nm, AOI=0deg.·6·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0001879 UVFS beamsplitter, dia 25.4x3 mm, SQ 20-10 s/d, SF l/10 @633 nm, coated S1: PR =40%+/-3% @800 nm, AOI=45 deg, S2: AR @800 nm, AOI=45 deg, p pol·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0002755 UVFS flat dichroic mirror d25.4x6mm SQ 20-10s/d SF l/10@633nm, parallelism 30", one side coated HR>99.5%@1030nm and HT>95%@515nm, back side coated AR<0.5%@515nm, AOI=45deg, for average polarization (s+p)/2-pol.·6·25.4
Out of stock Ships in: 58–61 calendar days
$140
VEI0002941 UVFS flat beamsplitter dia.25.4mm, thickness 1.0mm, SQ 20-10s/d, transmitted wavefront distortion l/10 @633nm, parallelism 30", coated PRp=50+/-3% @800nm, back side ARp<0.1% @800nm, AOI=45deg, p-pol·1·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0003446 UVFS flat beamsplitter d25.4x3mm, SQ 20-10s/d, SF l/10@633nm, parall 30", one side coated PRp=10+/-3%@800nm, back side ARp<0.25%@800nm, AOI=45deg, p-pol.·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0004072 UVFS flat beamsplitter d25.4x3 mm, SQ 20-10 s/d, SF l/10@633nm, parallelism 30", coated PR=10+/-2%@800 nm, back side AR@800nm, AOI=0deg·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0004251 UVFS flat mirror d25.4x6mm, SQ 20-10s/d, SF l/10, coated HRs>99%@255-320nm, AOI=45deg, s-pol., Low GDD·6·25.4
Out of stock Ships in: 58–61 calendar days
$164
VEI0004522 UVFS flat beamsplitter, d25.4x3mm, SQ 20-10s/d, SF l/10@633nm, parall 30", one side coated PR=30+/-3%@400nm, back side AR<0.25%@400nm, AOI=0-7deg.·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0005266 FS pl/cv output coupler, dia. 25.4x6mm, R=-500mm, SQ 20-10s/d, SF l/10@633nm, coated concave side PR=99+/-0.5%@1064nm, AOI=0deg, plane side AR<0.2%@1064nm.·6·25.4
Out of stock Ships in: 58–61 calendar days
$105
VEI0007311 UVFS beamsplitter, d25.4x3 mm, Rp=97+/-0.3%@800 nm/AR@800 nm, AOI=25 deg.·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0007524 UVFS flat beamsplitter, d25.4x1mm, SQ 20-10s/d, SF l/10@633nm, parall 30", one side coated PR=80+/-3%@800nm, back side AR<0.5%@800nm, AOI=45deg, for average polarization (s+p)/2-pol.·1·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0007852 UVFS flat beamsplitter, dia.25.4mm, thickness 2.0mm, SQ 20-10 s/d, SF l/10@633nm, parallelism 30", one side coated PR=60+/-3%@800nm, back side coated AR<0.25%@800nm, AOI=0deg.·2·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0007853 UVFS flat beamsplitter, dia.25.4mm, thickness 2.0mm, SQ 20-10 s/d, SF l/10@633nm, parallelism 30", one side coated PR=65+/-3%@800nm, back side coated AR<0.25%@800nm, AOI=0deg.·2·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0007854 UVFS flat beamsplitter, dia.25.4mm, thickness 2.0mm, SQ 20-10 s/d, SF l/10@633nm, parallelism 30", one side coated PR=70+/-3%@800nm, back side coated AR<0.25%@800nm, AOI=0deg.·2·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0007908 UVFS flat beamsplitter, d25.4x1mm, SQ 20-10s/d, transmitted wavefront distortion L/10@633 nm, parallelism 30", one side coated one side coated PR=1.5%+/-0.5%@1064 nm, the back side coated AR<0.65%@1064 nm, AOI=45 deg, (s+p)/2-pol.·1·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0007919 UVFS output coupler, dia.25.4x3mm, SQ 20-10 s/d, SF l/10, parallelism 30", one side coated PR=70+/-3%@800nm, back side coated AR<0.25%@800 nm, AOI=0deg.·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0008015 UVFS flat laser harmonic separator, d50.8x10mm, SQ 20-10s/d, SF l/10@633nm, parall 30", one side HR>99%@775-1100nm and HT>90%@400-725nm, back side AR<1%@400-725nm, AOI=0deg.·10·50.8
Out of stock Ships in: 58–61 calendar days
$175
VEI0008016 UVFS flat laser harmonic separator, d25.4x6mm, SQ 20-10s/d, SF l/10@633nm, parall 30", one side HR>99%@610-850nm and HT>90%@400-520nm, back side AR<0.5%@400-520nm, AOI=0deg.·6·25.4
Out of stock Ships in: 58–61 calendar days
$175
VEI0008115 UVFS pl/cv mirror dia 12.7x3 mm ROC=-50mm SQ 20-10 s/d SF l/10@633nm concave side coated HR>99.7% @1535 nm plane side AR<0.2%@1535 nm AOI=0deg·3·12.7
Out of stock Ships in: 58–61 calendar days
$88
VEI0008190 UVFS flat beamsplitter d25.4x3mm SQ 20-10s/d SF l/10@633nm parall 30" one side coated PRp=25+/-3%@266nm back side ARp<0.5%@266nm AOI=45deg p-pol·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0008241 UVFS flat beamsplitter, dia.25.4x3 mm, SQ 20-10s/d, SF l/10 @633nm, parallelism 30arcsec, one side coated PR=85+/-5%@760-840nm, back side AR<0.5% @760-840 nm, AOI=0deg.·3·25.4
Out of stock Ships in: 58–61 calendar days
$129
VEI0008252 UVFS flat beamsplitter, dia.25.4x3 mm, SQ 20-10s/d, SF l/10 @633nm, parallelism 30arcsec, one side coated PR=95+/-2%@760-840nm, back side AR<0.5% @760-840 nm, AOI=0deg.·3·25.4
Out of stock Ships in: 58–61 calendar days
$129
VEI0008269 UVFS pl/cx mirror, d25.4x6 mm, R=1500 mm, HR@760-840 nm, AOI=0 deg·6·25.4
Out of stock Ships in: 58–61 calendar days
$94
VEI0008417 UVFS flat beamsplitter d25.4x3 mm, SQ 20-10 s/d, SF l/10@633nm, parallelism 30", coated PR=10+/-2%@400 nm, back side AR@400nm, AOI=0deg·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0008536 UVFS Thin Film polarizer, d12.7x3 mm, SQ 20-10s/d, SF l/10, parall 30", one side coated Rs/Tp>99.5/95%@1064 nm, back side ARp<0.3%@1064 nm, AOI=45deg.·3·12.7
Out of stock Ships in: 58–61 calendar days
$140
VEI0008639 UVFS flat beamsplitter dia.25.4mm, thickness 6.0mm SQ 20-10s/d SF l/10@633nm, parallelism 30", one side IBS coated PRp=50+/-1%@266nm, back side ARp<0.1%@266nm, AOI=45deg, p-pol.·6·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0008829 UVFS flat beamsplitter, dia. 25.4x6mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", one side coated PRs=30 +/-1%@1064nm, the second side ARs<0.5%@1064nm, AOI=45deg, s-pol.·6·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0008854 UVFS flat non polarizing beamsplitter, dia.25.4mm, thickness 6.0mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", one side coated PRsp=50+/-5%@351nm, (Rs-Rp)<10%, back side ARsp<0.5%@351nm, AOI=45deg.·6·25.4
Out of stock Ships in: 58–61 calendar days
$117
VEI0008858 UVFS flat non polarizing beamsplitter, dia.50.8mm, thickness 8.0mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", one side coated PRsp=50+/-5%@351nm, (Rs-Rp)<10%, back side ARsp<0.5%@351nm, AOI=45deg.·8·50.8
Out of stock Ships in: 58–61 calendar days
$175
VEI0009080 UVFS flat beamsplitter, dia.25.4mm, thickness 3.0mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", coated PRp=99.0+/-0.5%@800nm, AOI=45deg, p-pol., back side ARp<0.3%@800nm.·3·25.4
Out of stock Ships in: 58–61 calendar days
$111
VEI0009107 UVFS flat mirror dia.25.4x2mm, SQ 60-40s/d, SF 1l @633nm, coated HR>99.5%@500-530+1000-1060nm, AOI=45deg, (s+p)/2-pol.·2·25.4
Out of stock Ships in: 58–61 calendar days
$59
VEI0009212 UVFS pl/cv mirror, d25.4x6mm, ROC=-350mm, SQ 40-20s/d, SF l/10@633nm, concave side coated Al+protection, R>86%@300nm-IR, LDT >0.25J/cm2, 10ns pulses @1064nm.·6·25.4
Out of stock Ships in: 58–61 calendar days
$47
VEI0009252 UVFS flat mirror, dia.152.4mm, thickness 25.4mm, SQ 20-10s/d, SF l/5@633nm, one side S1 coated HRp >99%@750-850nm and HTs>85%@1054-1074+1200-1400nm, side S2: ARs<1.5%@1054-1074+1200-1400nm, AOI=45deg·25.4·152.4
Out of stock Ships in: 58–61 calendar days
$992
VEI0009333 UVFS flat mirror dia.50.8mm, thickness 8.0mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", one side coated HR>99.5%@380-400 nm +HT>95%@760-800 nm, back side coated AR<0.65%@760-800 nm, AOI=45 deg, (s+p)/2-pol. LOW GDD·8·50.8
Out of stock Ships in: 58–61 calendar days
$251
VEI0009334 UVFS flat mirror dia.50.8mm, thickness 8.0mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", one side coated HR>98.5%@251-269 nm +HT>90%@390+780 nm, back side coated AR<1%@390+780 nm, AOI=45 deg, (s+p)/2-pol. LOW GDD.·8·50.8
Out of stock Ships in: 58–61 calendar days
$251
VEI0009335 UVFS flat mirror dia.25.4 mm, thickness 3.0mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", one side coated HR>98.5%@251-269 nm +HT>95%@760-800 nm, back side coated AR<0.65%@760-800 nm, AOI=45 deg, (s+p)/2-pol. LOW GDD.·3·25.4
Out of stock Ships in: 58–61 calendar days
$175
VEI0009372 UVFS thin film broadband polarizer, dia.50.8mm, 20-10s/d, WFD l/8@633nm, parallelism <30", one side coated Rs/Tp@1020-1040nm (Rs>99.5%/Tp>98%@1030nm, AOI=45deg, back side ARp<0.5%@1020-1040nm.·6·50.8
Out of stock Ships in: 58–61 calendar days
$409
VEI0009410 UVFS plano/concave mirror, dia.12.7x6mm, SQ 40-20 s/d, ROC=-250 (+/-1%), surface irregularity L/10@633nm, parallelism <3min, concave side IBS coated HR>99.8% @ 370-400nm, AOI=0deg, flat side IBS coated AR<0,1% @ 370-400nm, AOI=0deg·6·12.7
Out of stock Ships in: 58–61 calendar days
$164
VEI0009415 UVFS flat mirror, dia.38.1mm, thickness 6.0mm, SQ 20-10s/d, SF l/10@633nm, IBS coated HR>99.9%@760-840nm, Low GDD, AOI=45deg, s- and p-pol.·6·38.1
Out of stock Ships in: 58–61 calendar days
$175
VEI0009416 UVFS flat mirror, dia.38.1mm, thickness 8.0mm, SQ 20-10s/d, SF l/10@633nm, IBS coated HR>99.9%@760-840nm, Low GDD, AOI=45deg, s- and p-pol.·8·38.1
Out of stock Ships in: 58–61 calendar days
$175
VEI0009421 UVFS flat mirror d25.4x6mm, SQ 20-10s/d, SF l/10, coated HRs>99%@370-480nm, AOI=45deg, s-pol., Low GDD·6·25.4
Out of stock Ships in: 58–61 calendar days
$59
VEI0009444 UVFS pl/cx mirror d12.7x6mm, ROC=+200mm, SQ 20-10s/d, SF l/10@633nm, convex side coated HR>99%@1064nm and HT>95%@808nm, plane side coated AR<0.2%@808nm, AOI=0deg.·6·12.7
Out of stock Ships in: 58–61 calendar days
$105
VEI0009445 UVFS pl/cx mirror d12.7x6mm, ROC=+1000mm, SQ 20-10s/d, SF l/10@633nm, convex side coated HR>99%@1064nm and HT>95%@808nm, plane side coated AR<0.2%@808nm, AOI=0deg.·6·12.7
Out of stock Ships in: 58–61 calendar days
$105
VEI0009446 FS pl/cx mirror d12.7x6mm, ROC=+500mm, SQ 20-10s/d, SF l/10@633nm, convex side coated HR>99%@1064nm and HT>95%@808nm, plane side coated AR<0.2%@808nm, AOI=0deg.·6·12.7
Out of stock Ships in: 58–61 calendar days
$105
VEI0009460 UVFS laser harmonic separator dia.25.4x6mm, SQ 20-10s/d, SF l/10@633nm, parallelism 30", coated HR>99.5%@257-275nm and HT>90%@400+800nm, back side AR<0.5%@400+800nm, AOI=45deg, (s+p)/2-pol.·6·25.4
Out of stock Ships in: 58–61 calendar days
$175
VEI0009465 UVFS flat mirror, d50.8x6mm, SQ 20-10s/d, SF l/10@633nm, coated HR>99.5%@970nm, AOI=45deg, (s+p)/2-pol.·6·50.8
Out of stock Ships in: 58–61 calendar days
$105
VEI0009466 UVFS flat mirror, d50.8x6mm, SQ 20-10s/d, SF l/10@633nm, coated HR>99.5%@970nm, AOI=0deg·6·50.8
Out of stock Ships in: 58–61 calendar days
$105
VEI0009467 UVFS flat mirror, d50.8x6mm, SQ 20-10s/d, SF l/10@633nm, coated S1: PR=50%+/-5% @970nm, S2: AR @970 nm, AOI=45deg, s=p·6·50.8
Out of stock Ships in: 58–61 calendar days
$129

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
