Oven for Nonlinear Crystals CH9
TC1 and CO1 is high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Order
| SKU | Description · Description, features | |
|---|---|---|
| CH9-15-12/12-x | For crystal with 12x12 mm aperture, up to 15 mm length |
Out of stock
Ships in: 62–65 calendar days
$686
|
| CH9-15-3/3-x | For crystal with 3x3 mm aperture, up to 15 mm length |
Out of stock
Ships in: 62–65 calendar days
$686
|
| CH9-15-4/4-x | For crystal with 4x4 mm aperture, up to 15 mm length |
Out of stock
Ships in: 62–65 calendar days
$686
|
| CH9-15-5/5-x | For crystal with 5x5 mm aperture, up to 15 mm length |
Out of stock
Ships in: 62–65 calendar days
$686
|
| CH9-15-6/6-x | For crystal with 6x6 mm aperture, up to 15 mm length |
Out of stock
Ships in: 62–65 calendar days
$686
|
| CH9-15-y/z-x | Other crystal sizes, up to 15 mm length |
Out of stock
Ships in: 62–65 calendar days
$749
|
| CH9-30-12/12-x | For crystal with 12x12 mm aperture, up to 30 mm length |
Out of stock
Ships in: 62–65 calendar days
$769
|
| CH9-30-3/3-x | For crystal with 3x3 mm aperture, up to 30 mm length |
Out of stock
Ships in: 62–65 calendar days
$769
|
| CH9-30-4/4-x | For crystal with 4x4 mm aperture, up to 30 mm length |
Out of stock
Ships in: 62–65 calendar days
$769
|
| CH9-30-5/5-x | For crystal with 5x5 mm aperture, up to 30 mm length |
Out of stock
Ships in: 62–65 calendar days
$769
|
| CH9-30-6/6-x | For crystal with 6x6 mm aperture, up to 30 mm length |
Out of stock
Ships in: 62–65 calendar days
$769
|
| CH9-30-y/z-x | Other crystal sizes, up to 30 mm length |
Out of stock
Ships in: 62–65 calendar days
$855
|

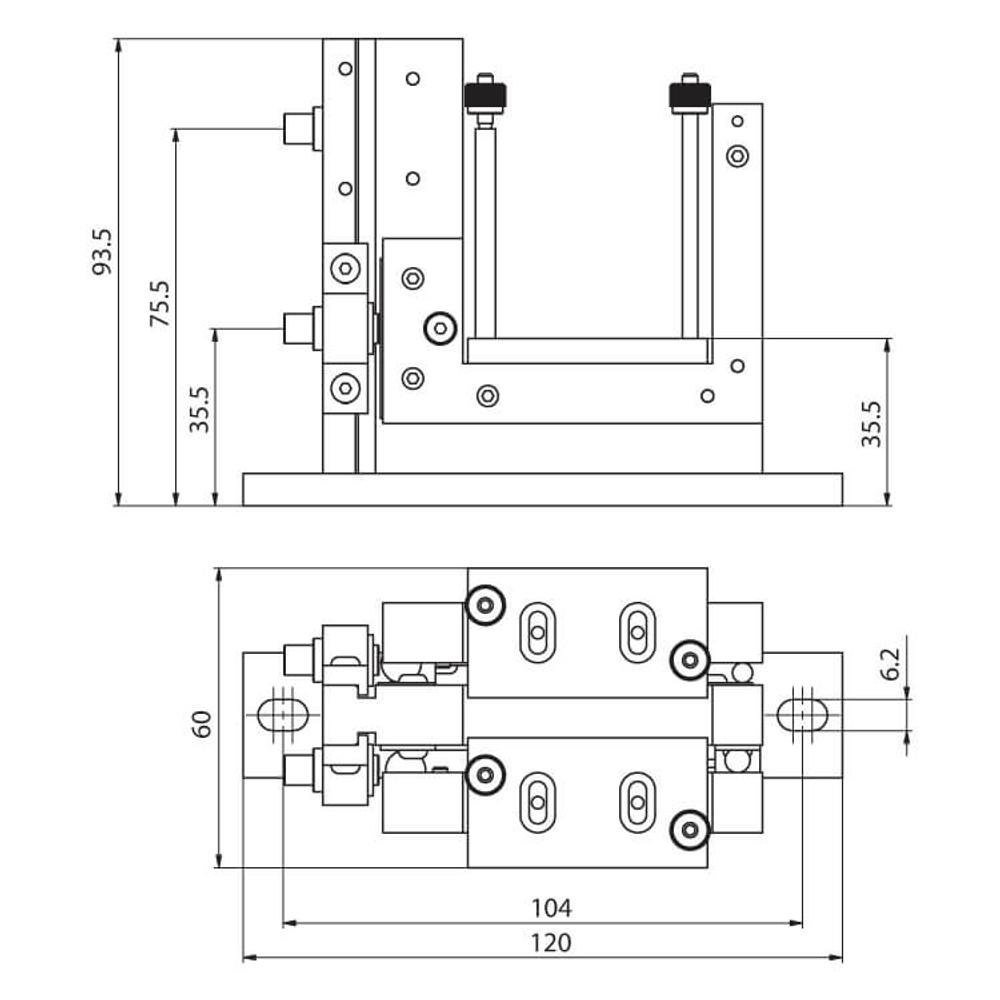

| MS-2 | Two axis tilt adjustment stage (5 degrees range), for 2 CO1 ovens |
Out of stock
Ships in: 62–65 calendar days
$418
|
| MS-3 | Adapter for CH3, CH4 or CH7 mounting on rotary stage, 15 degrees fine tuning, angle read-out***. |
Out of stock
Ships in: 62–65 calendar days
$139
|
| PS-12-CH9 | Power supply, 100-240 VAC mains, +12 VDC output |
Out of stock
Ships in: 62–65 calendar days
$72
|
Specifications
Specifications
| Model | CH7-15 | CH7-30 |
|---|---|---|
| Temperature tuning range near preset | ± 5 °C | ± 5 °C |
| Maximum crystals dimensions | 15x15x15 mm | 15x15x30 mm |
| Sealing (optional) | FS windows | FS windows |
| Preset temperature | 30-60 (80) °C | 30-60 (80) °C |
| Long-term stability | ± 0.2 °C | ± 0.2 °C |
| Temperature OK output signal | Present | Present |
| Powering requirements | 12-15 V DC | 12-15 V DC |
| Power consumption | 6 W | 6 W |
| Sensor type | NTC Thermo resistor | NTC Thermo resistor |
| Output connector | Binder 719, 3 pin | Binder 719, 3 pin |
| Dimensions, WxHxD | 48x50x44, mm | 48x50x56, mm |
Description
TC1 and CO1 is high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough RS232 computer interface it can be controlled from personal computer. Actual crystal temperature is shown on LED display. The nonlinear crystal is mounted into adapter before insertion into oven CO1. Such design facilitates handling and replacement of the crystal. The nonlinear crystal can be sealed with fused silica windows in order to provide extra protection. The standard adapters are 15, 30 and 50 mm. length with apertures of 3x3, 4x4, 5x5, 6x6 mm size. Customized adapters for crystals up to 12x12 mm size are available. In addition, adapters for Brewster-cut and PPLN crystals are available too.
Specifications are subject to changes without advance notice.
