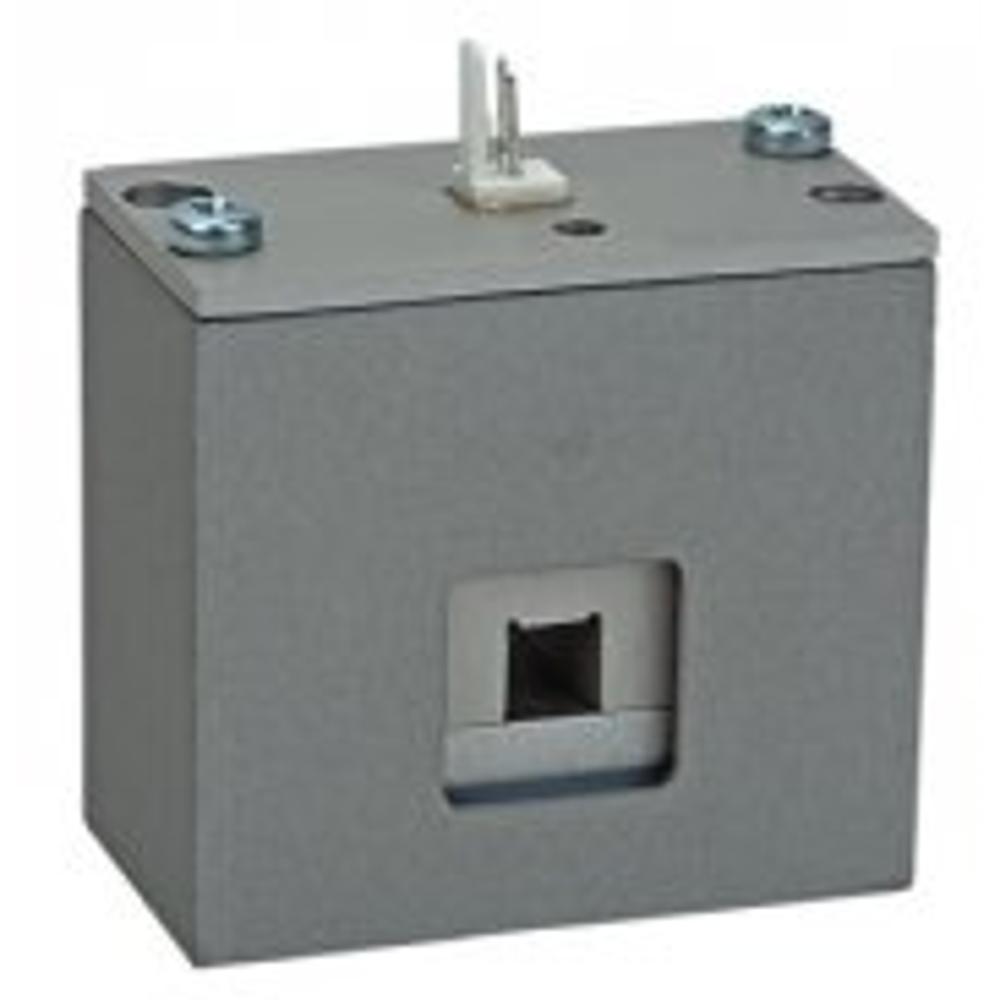

Oven for Nonlinear Crystals CH3
CH3 is a compact oven with build-in thermocontroller for temperature up to 60 °C. It is ideal for larger aperture crystals like KD*P. The crystals with up to 15 x 15 mm dimensions can be mounted. CH3-30 model can fit… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Description, features | |
|---|---|---|
| CH3-20-y/y-80 | For temperature up to 80 °C |
Out of stock
Ships in: 62–65 calendar days
$532
|
| CH3-20-y/y-x | Standard crystal sizes* |
Out of stock
Ships in: 62–65 calendar days
$444
|
| CH3-20-y/z-x | Non-standard crystal sizes |
Out of stock
Ships in: 62–65 calendar days
$502
|
| CH3-30-y/y-80 | Version for temperature up to 80 °C |
Out of stock
Ships in: 62–65 calendar days
$581
|
| CH3-30-y/y-x | Standard crystal sizes* |
Out of stock
Ships in: 62–65 calendar days
$503
|
| CH3-30-y/z-x | Non-standard crystal sizes |
Out of stock
Ships in: 62–65 calendar days
$567
|
| PS-12-CH3 | 100-240 VAC mains, +12 VDC output |
Out of stock
Ships in: 62–65 calendar days
$75
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Model | CH3-20 | CH3-30 |
|---|---|---|
| Temperature tuning range near preset | ± 5 °C | ± 5 °C |
| Maximum crystals dimensions | 15x15x20 mm | 15x15x30 mm |
| Preset temperature | 30-60 (80) °C | 30-60 (80) °C |
| Long-term stability | ± 0.2 °C | ± 0.2 °C |
| Powering requirements | 12-15 V DC | 12-15 V DC |
| Power consumption | 6 W | 6 W |
| Sensor type | NTC Thermo resistor | NTC Thermo resistor |
| Output connector | Molex 2 pin | Molex 2 pin |
| Dimensions, W×H×D, mm | 48x44x26 | 48x44x36 |
Description
CH3 is a compact oven with build-in thermocontroller for temperature up to 60 °C. It is ideal for larger aperture crystals like KD*P. The crystals with up to 15 x 15 mm dimensions can be mounted. CH3-30 model can fit crystals with up to 30 mm length.
Each oven is made exactly for specified crystal, so it cannot be used for different size crystals.
Specifications are subject to changes without advance notice
