Non Standard BK7 Dichroic Mirrors

Non Standard BK7 Dichroic Mirrors

EKSMA OPTICS offers BK7 dichroic mirrors for fast off-the-shelf delivery. Substrate Types of Non-Standard BK7 Dichroic Mirrors available includes: Concave/convex Plano/Concave Plano/Convex Plano

From $71 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Size Any
or
T, mm Any
Catalog band: 2.0–10.0 mm
Manufacturable: 2.0–10.0 mm
2.0 mm 10.0 mm
or mm
Qty Any
Catalog band: 1.0–11.0
Manufacturable: 1.0–11.0
1.0 11.0
or
S1 Any
or
S2 Any
or
Radius Any
Catalog band: -1200.0–28.51
Manufacturable: -1200.0–28.51
-1200.0 28.51
or
52 catalog variants — refine the spec to narrow it down.
SKU S1 · Radius · S2 · Notes · Size · T, mm · Qty
VEI0000323 HR>99.5%@532nm+ HT>95%@1064nm·-·AR<0.5%@1064nm·-1·Ø12,7·4·2
Out of stock Ships in: 58–61 calendar days
$77
VEI0001279 HR>99.5%@532nm+ HT>90%@1064nm·-·AR<0.5%@1064nm·-8·Ø12,7·5·11
Out of stock Ships in: 58–61 calendar days
$77
VEI0002022 HR>99%@450-650nm+ HT>90%@1064nm·-·AR<0.25%@1064nm·-·Ø25,4·6·2
Out of stock Ships in: 58–61 calendar days
$116
VEI0002190 HR>90%@1020-1040nm+ HT>90%@750-800+1495-1595nm·-·AR<0.5%@750-800 +1495-1595nm·-·Ø25,4·6·4
Out of stock Ships in: 58–61 calendar days
$141
VEI0002212 HR>99%@1060nm+ HT>85%@940-980nm·-·AR<0.5%@940-980 nm·-3·Ø25,4·6·2
Out of stock Ships in: 58–61 calendar days
$258
VEI0002342 HR>99%@493nm+ HT>95%@650nm·-·AR<0.2%@650nm·-·Ø50,8·8·1
Out of stock Ships in: 58–61 calendar days
$141
VEI0002522 HR>99%@1064+ HT>95%@532nm·-300·AR<0.2%@532nm·-·Ø25·6·1
Out of stock Ships in: 58–61 calendar days
$140
VEI0002526 HR>99.5%@1064nm+ HT>98%@808nm·-250·AR<0.25%@808nm·-·Ø12,7·2·3
Out of stock Ships in: 58–61 calendar days
$116
VEI0002527 HR>99.5%@1064nm+ HT>98%@808nm·-300·AR<0.25%@808nm·-·Ø12,7·2·4
Out of stock Ships in: 58–61 calendar days
$116
VEI0002571 R>99.5%@522nm +R<40%@600-640nm·-125·-·-17·Ø25,4·6·1
Out of stock Ships in: 58–61 calendar days
$88
VEI0002572 HR>99.5%@522nm+HT>80% @444nm+R<40%@600-640nm·-·AR<0.5%@444nm·-7·Ø25,4·6·2
Out of stock Ships in: 58–61 calendar days
$88
VEI0002634 HR>99.5%@972nm and HT>90%@486nm·-50·AR<0.25%@486nm·-13·Ø12,7·6·2
Out of stock Ships in: 58–61 calendar days
$120
VEI0002804 HR>99%@465nm+ HT>90%@930nm·-·AR<0.5%@930nm·-1·Ø25,4·6·4
Out of stock Ships in: 58–61 calendar days
$94
VEI0002847 HR>99%@1342+HT>98%@808nm·18,88·AR<0.2%@808nm·-·Ø12,7·3.5·1
Out of stock Ships in: 58–61 calendar days
$149
VEI0002848 HR>99%@1342+HT>98%@808nm·28,51·AR<0.2%@808nm·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$149
VEI0002874 HR>99.9%@1342+ HT>95%@1064nm·-30·-·-·Ø12·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002875 HR>99.9%@1342+ HT>95%@1064nm·-70·-·-·Ø12·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002876 HR>99.9%@1342+ HT>95%@1064nm·-80·-·-·Ø12,7·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002877 HR>99.9%@1342+ HT>95%@1064nm·-90·-·-·Ø12,7·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002878 HR>99.9%@1342+ HT>95%@1064nm·-100·-·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002879 HR>99.9%@1342+ HT>95%@1064nm·-120·-·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002882 HR>99.9%@1342+ HT>95%@1064nm·-150·-·-·Ø12,7·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002883 HR>99.9%@1342+ HT>95%@1064nm·-200·-·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002885 HR>99.9%@1342+ HT>95%@1064nm·-600·-·-·Ø12,7·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002887 HR>99.9%@1342+ HT>95%@1064nm·-800·-·-·Ø25,4·6·1
Out of stock Ships in: 58–61 calendar days
$163
VEI0002888 HR>99.9%@1342+ HT>95%@1064nm·-1000·-·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0002890 HR>99.9%@1342nm+ HT>95% @1064nm·-·-·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$101
VEI0002891 HR>99.9%@1342nm+ HT>95%@1064nm·-·-·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$101
VEI0002966 HR>99%@1064+HT>95%@532nm·-150·AR<0.2%@532nm·-·Ø25,4·6·2
Out of stock Ships in: 58–61 calendar days
$140
VEI0002968 HR>99.5%@532nm+ HT>95%@1064nm·-·AR<0.5%@1064nm·-1·Ø50,8·10·1
Out of stock Ships in: 58–61 calendar days
$188
VEI0002969 HR>99%@1064nm+ HT>90%@532nm·-·AR<0.5%@532nm·-1·Ø50,8·10·1
Out of stock Ships in: 58–61 calendar days
$188
VEI0003005 HR>99.5%@522+ HT>98%@444 nm·-75·AR<0.2%@444nm·-·Ø25,4·6·1
Out of stock Ships in: 58–61 calendar days
$88
VEI0003029 HR>99.5%@1283 nm+HT=98%@1064nm·-100·AR<0.5%@1064nm·-2·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$116
VEI0003040 HR>99.5%@1064nm +HT> 95%@808nm·-·AR<0.25%@808nm·-·15x15·3·1
Out of stock Ships in: 58–61 calendar days
$94
VEI0003046 HR>99.5%@400+800nm+ HT>90%@660nm·-·AR<0.5%@660nm·-1·Ø25,4·6·4
Out of stock Ships in: 58–61 calendar days
$116
VEI0003053 HRp>99%@700nm+ HTs>99%@1400nm·-·ARs<0.5%@1400nm·-11·Ø30·6·2
Out of stock Ships in: 58–61 calendar days
$106
VEI0003087 HR>99%@1064nm and HT>95%@808nm·-50·AR<0.2%@808nm·-·Ø12,7·3·2
Out of stock Ships in: 58–61 calendar days
$115
VEI0003089 HR>99%@1064nm and HT>95%@808nm·-200·AR<0.2%@808nm·-·Ø12,7·3·1
Out of stock Ships in: 58–61 calendar days
$115
VEI0003101 HR>99.5%@1070nm +HT>90%@400-700nm·-·AR<1%@400-700nm·-1·Ø38,1·8·1
Out of stock Ships in: 58–61 calendar days
$175
VEI0003123 HR>99%@532nm+ HTavg> 80%@400-700nm·-·AR<1%@400-700nm·-1·Ø50,8·8·2
Out of stock Ships in: 58–61 calendar days
$188
VEI0003136 HR>99%@715-795nm+ HT>70%@660nm·-·AR<0.5%@660nm·-1·Ø25,4·6·4
Out of stock Ships in: 58–61 calendar days
$88
VEI0003148 HR>99.9%@1342+ HT>95%@1064nm·-70·-·-20·12x12·6·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0003149 HR>99.9%@1342+ HT>95%@1064nm·-600·-·-·12x12·8·1
Out of stock Ships in: 58–61 calendar days
$148
VEI0003150 HR>99.9%@1342+ HT>95%@1064nm·-900·-·-·Ø25,4·6·1
Out of stock Ships in: 58–61 calendar days
$163
VEI0003151 HR>99.9%@1342+ HT>95%@1064nm·-1200·-·-·Ø25,4·6·1
Out of stock Ships in: 58–61 calendar days
$163
VEI0003270 HR>99%@532+780nm+ HT>95%@1064nm·-·AR<0.25%@1064nm·-·Ø25,4·6·2
Out of stock Ships in: 58–61 calendar days
$94
VEI0003299 HR>99%@473nm+ HT>95%@632.8nm·-·AR<0.5%@632.8nm·-1·Ø25,4·6·2
Out of stock Ships in: 58–61 calendar days
$88
VEI0003362 HR>99.5%@1000-1060 nm and HT>90%@660nm·-·AR<0.5%@660nm·-1·Ø25,4·6·1
Out of stock Ships in: 58–61 calendar days
$98
VEI0003384 HR>99.5%@355nm+ HT>90%@405nm·-·AR<0.5%@405nm·-23·Ø25,4·6·3
Out of stock Ships in: 58–61 calendar days
$88

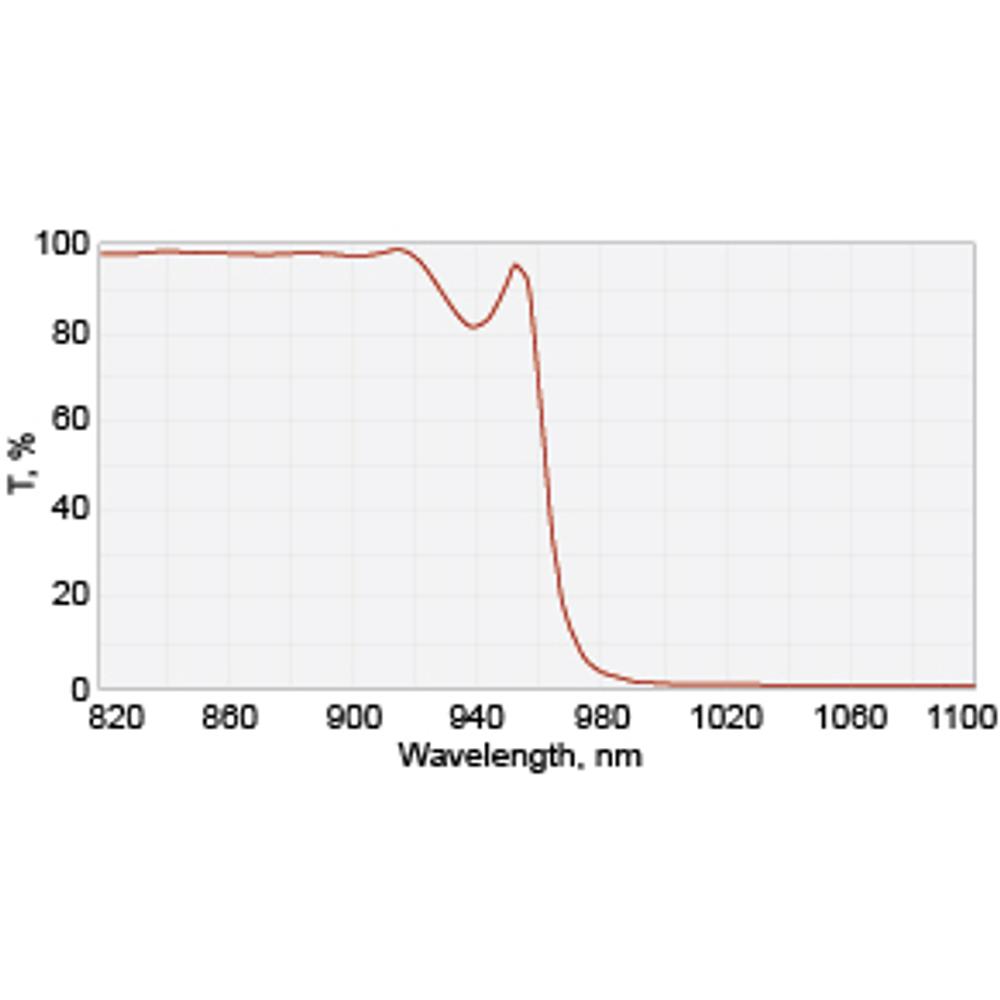

VEI0003650 HR>99.5%@1064nm +HT>95%@880nm·-·AR<0.5%@880nm·-1·Ø12,5·2·2
Out of stock Ships in: 58–61 calendar days
$71
VEI0003668 HR>99%@1064nm and HT>95%@808nm·-200·AR<0.2%@808nm·-·Ø12,7·5·1
Out of stock Ships in: 58–61 calendar days
$115
VEI0003761 HR>99.5%@1064nm+ HT>95%@532nm·-·AR<0.5%@532nm·-1·Ø50,8·8·1
Out of stock Ships in: 58–61 calendar days
$188

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Description

EKSMA OPTICS offers BK7 dichroic mirrors for fast off-the-shelf delivery. Substrate Types of Non-Standard BK7 Dichroic Mirrors available includes: Concave/convex Plano/Concave Plano/Convex Plano
