Copper (Cu) Mirrors
very high thermal conductivity Optical components - Cu metal mirrors are intended for the following typical applications: optical resonators in pulsed and CW high power IR lasers optical systems of transforming,… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Diameter · Thickness | |
|---|---|---|
| 570-6250 | ø 25.4 mm·6 mm |
Out of stock
Ships in: 58–61 calendar days
$252
|
| 570-6380 | ø 38,1 mm·10 mm |
Out of stock
Ships in: 58–61 calendar days
$264
|
| 570-6500 | ø 50.8 mm·10 mm |
Out of stock
Ships in: 58–61 calendar days
$287
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Material | Cu |
| Density, g/cm3 | 7.4 |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | >80% of diameter |
| Diameter tolerance | +0.0 -0.12 mm |
| Thickness tolerance | ±0.25 mm |
| Surface flatness | λ/4 @ 633 nm |
| Operation wavelength | 10.6 µm |
| Coating | protected gold |

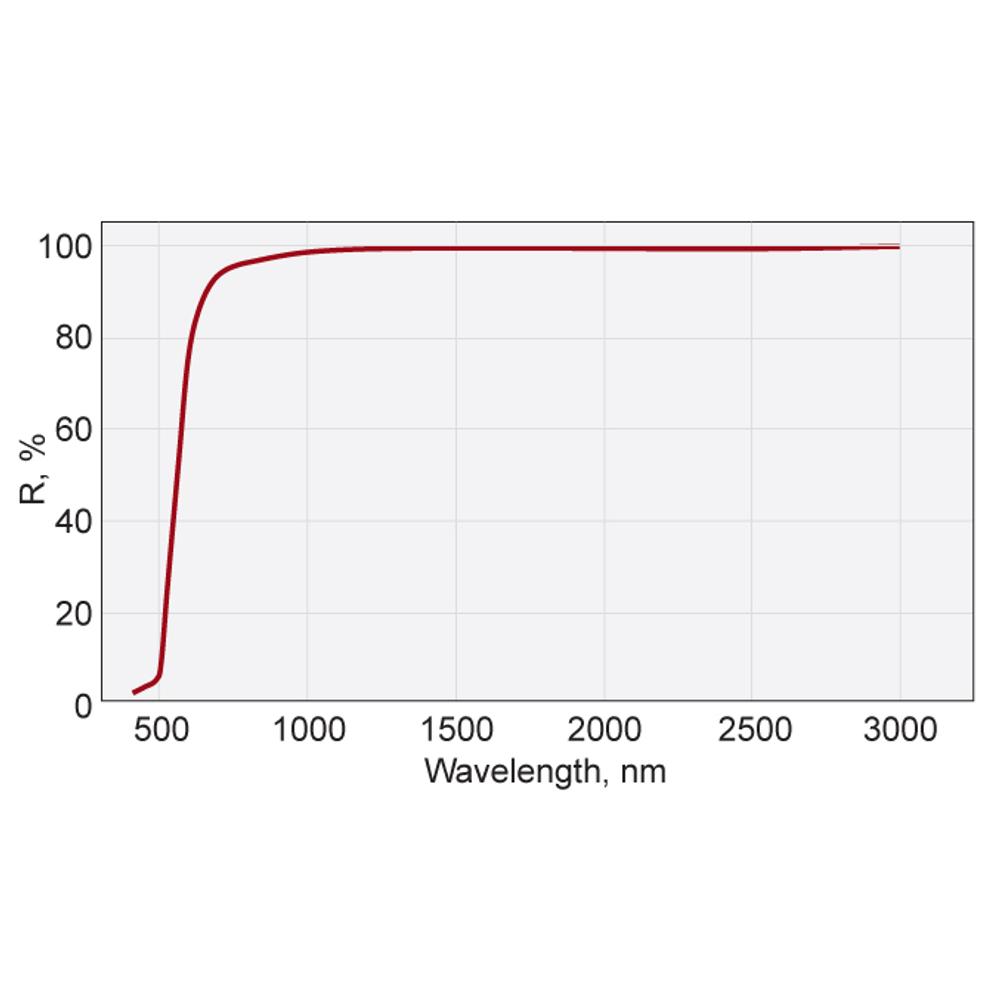

| Reflectivity for unpolarised radiation | > 99% |
Description
very high thermal conductivity Optical components - Cu metal mirrors are intended for the following typical applications: optical resonators in pulsed and CW high power IR lasers optical systems of transforming, transmitting and focusing of laser beams. The working surface of Cu mirrors is treated by diamond turning or polishing. Treated surfaces are coated with corrosion-resistant, reflective and protective-reflecting coatings.Copper mirror is typically used for high-power CO2 laser system, it has high thermal conductivity.
