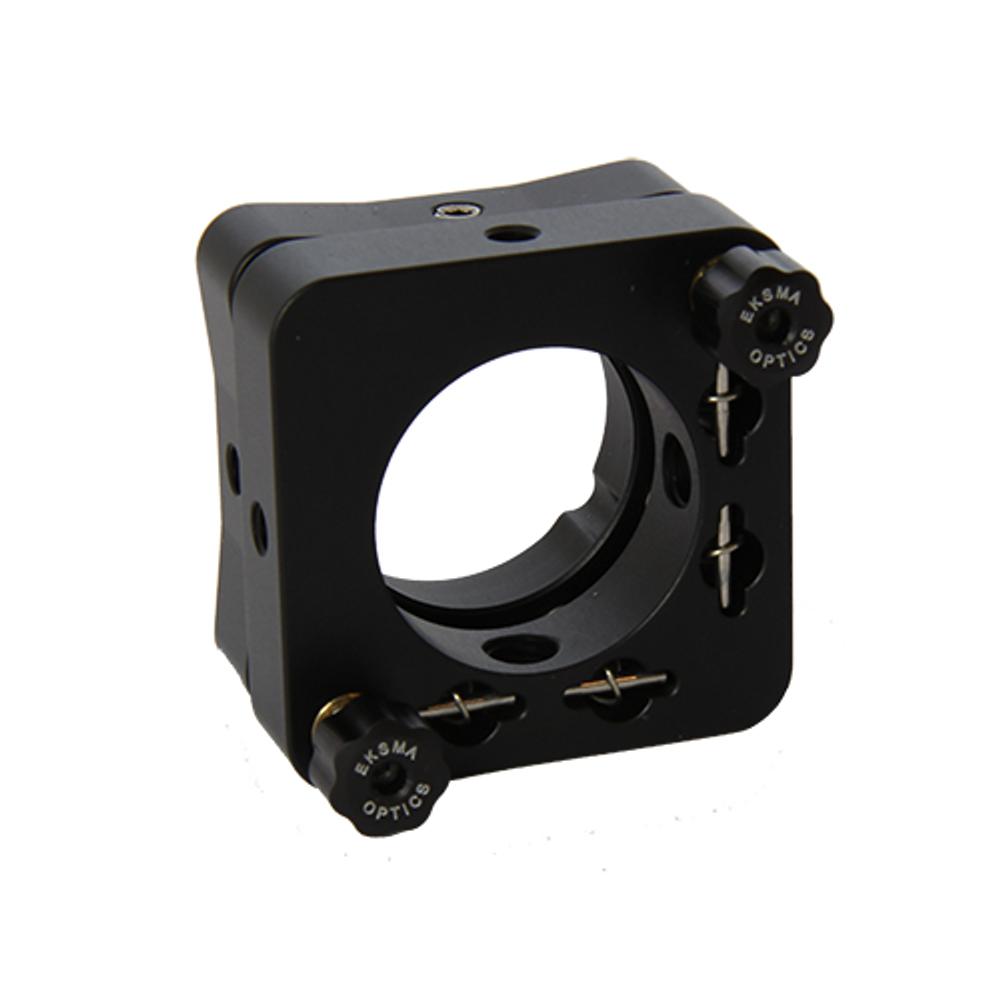

Compact Kinematic Mirror/Window Mount 840-0058-01
• 1" optics mount - fits Ø25.4 mm and Ø25.0 mm optics of ≥5 mm thickness • Tilt range about two axis - ±5o • Sensitivity - 3 arcsec • Mounting: M6, M4, M3 fixing holes on either of two sides •… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Description · Weight | |
|---|---|---|
| 082-2840-i0-45M58 | Mount 840-0058-01 with UVFS flat mirror HR>99% @280-400nm, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 082-4075-i0-45M58 | Mount 840-0058-01 with UVFS flat mirror HR>99% @400-750nm, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 082-7511-i0-45M58 | Mount 840-0058-01 with UVFS flat mirror HR>99% @750-1100nm, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 092-0015M58 | Mount 840-0058-01 with BK7 flat Protected Aluminium coated mirror Rave>86% @300nm-IR, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 092-0025M58 | Mount 840-0058-01 with BK7 flat Protected Silver coated mirror Rave>96% @400nm-IR, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 092-0030M58 | Mount 840-0058-01 with BK7 flat Protected Gold coated mirror Rave>98% @900nm-IR, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 092-1010M58 | Mount 840-0058-01 with UVFS flat UV Enhanced Aluminium coated mirror Rave>85% @210-400nm, AOI=0-45deg·0.06 kg |
Out of stock
—
|
| 840-0058-01 | Mount for optics dia 25.4 mm·0.05 kg |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Clear aperture | 23 mm |
| Tilt range (about two axis) | ±5° |
| Sensitivity | 3 arcsecond |
| Mounting | M6, M4, M3 holes on either of two sides |
| Screw thread pitch | 0.25 mm |
| Weight | 0.05 kg |
Description
- 1" optics mount - fits Ø25.4 mm and Ø25.0 mm optics of ≥5 mm thickness
- Tilt range about two axis - ±5o
- Sensitivity - 3 arcsec
- Mounting: M6, M4, M3 fixing holes on either of two sides
- Hexagon socket head cap screws - 2 mm hex key can be used for alignment
- Material: black anodized aluminum
Compact Kinematic Mirror/Window Mount 840-0058-01 is designed for precise angular alignment of optical elements. It is suitable for first surface mirrors, rear mirrors, output couplers and windows.
840-0058-01 has a resting flange to stop the optics. One fixing screw secures the optics against two hard rests, which make two contact points. To prevent damage to the optics, the tip of the fixing screw is made of plastic. The platform is preloaded by four strong springs, ensuring tight kinematic fit. Compact design (outer size just 40x40mm) is an advantage where the space is tight. Three types of holes (M6, M4 and M3) on the edge of the mount make it universal when choosing suitable rod or post.
