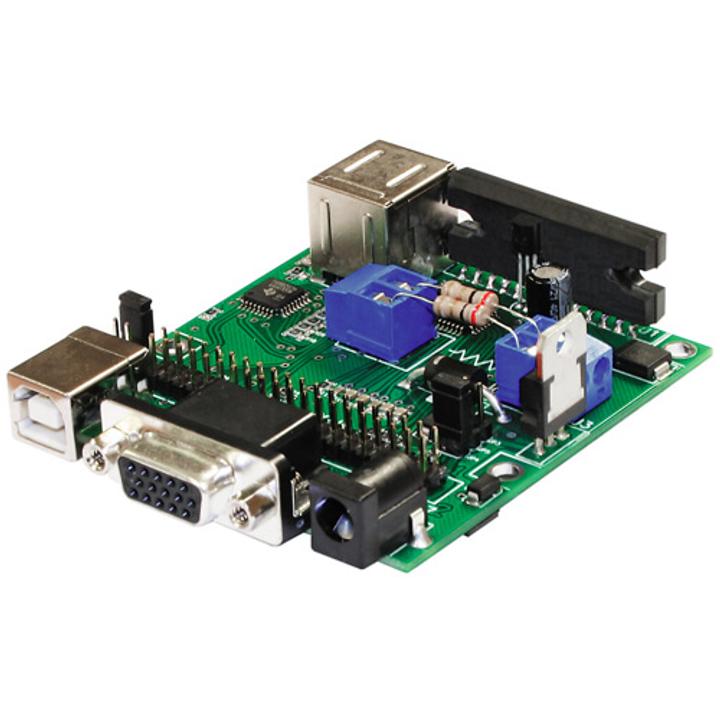

Stepper Motor Controller Card with USB Interface 980-0030F-USB SKU: 980-0233F-USB
• PWM chopper type current control (up to 1.5 A per phase) • Resolution: full step, 1/2, 1/4, 1/8 • Speed: up to 5000 steps/s • Full featured control software with graphical user interface for Windows 2000/XP/Vista/7 included • Set of virtual instruments for NI LabView…
Variant specifications
| Specification | Value |
|---|---|
| Description | 3-axes Controller in a box |
Shared product specifications
These specifications apply across the Stepper Motor Controller Card with USB Interface 980-0030F-USB product family.
Electrical
| Targeted for bipolar, two phase stepper motors with current ratings of 0.25A to 1.5 A. The current limit value is set by the manufacturer |
| Power supply voltage ranges from 12V to 36V |
| Overcurrent, overvoltage and temperature protection |
| Synchronization Input and Output |
| Encoder inputs for stall detection (shared with Synchronization Input) |
| Revolutions counter input (shared with Synchronization Input) |
Motion
| Resolution: full step, 1/2, 1/4, 1/8 |
| Speed: 2-5000 steps/s |
| Programmable speed and trip points |
| Programmable accelaration and decelaration ramps |
| Soft start/stop mode |
Programming
| Graphical user interface SMCView for Windows 2000/XP/Vista/7 |
| Drivers and dynamic link library for Windows/XP/Mobile host programming |
| Set of virtual Instruments for National Instruments LabView |
| Drivers for Linux |
USB Expansion
| Each 980-0030F-USB controller card comes with an integrated USB hub to allow easy system expansion of additional single- or multi-axis controller cards |
| Additional controllers can be connected directly to the computer in use or via any other controller card in the system. In either case the software will appropriately recognize the added controller card(s) and treat all connected controllers as system |
| Two USB expansion ports can be found on each controller card. Note when ordering encased cards that only the single-axis controller has access to the USB expansion outputs on the rear panel of the unit |
Control
| PC control via USB interface |
| Optional handheld remote offers manual two button directional control |
| Additional features include two programmable limit switches, an emergency limit switch, encoder and revolution sensor for stall detection and input/output for synchronization |
Mechanical
| Operating temperature range: 0 to 70 °C |
| Box size for 1-axis controller: 90x120x70 mm |
| Box size for 2 and more axis controller: 180x120x90 mm |
