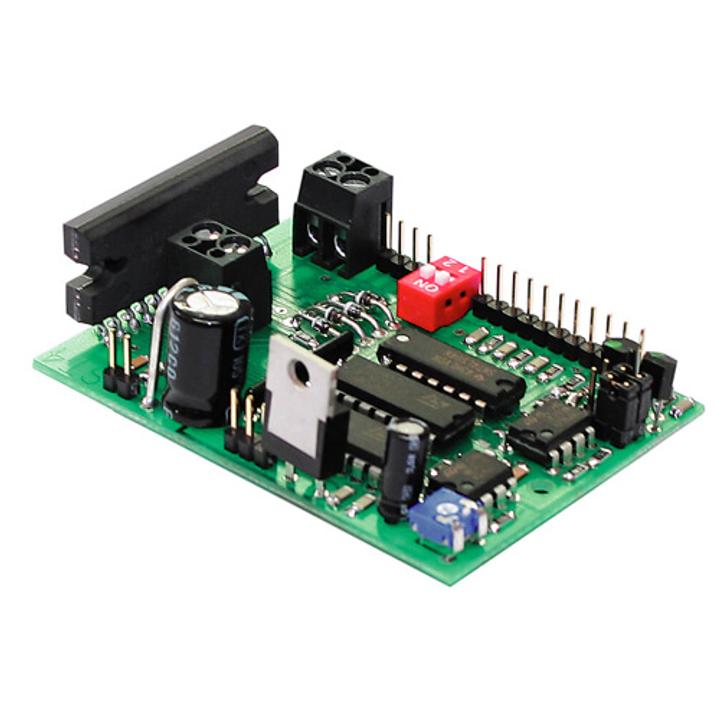

Stepper Motor Manual Controller Card 980-0050 SKU: 980-0151-1.5
PWM chopper type current control (up to 1.5 A per phase) Resolution: full step. 1/2, 1/4, 1/8 - selectable by DIP switches Version with speed from 300 to 600 steps/s - tunable by trimmer Version with speed from 600 to 1200 steps/s - tunable by trimmer LED indicators of…
Variant specifications
| Specification | Value |
|---|---|
| Description | 1 axis controller (1.5A max motor current setting) |
Shared product specifications
These specifications apply across the Stepper Motor Manual Controller Card 980-0050 product family.
Mechanical
| Operating temperature range: 0 to 70°C |
| Box size for 1-axis controller: 80x130x65 mm |
| Box size for 2 and more axis controller: 90x200x60 mm |
Electrical
| Targeted for bipolar, two phase stepper motors with current ratings of 0.25 A to 1.5 A. Current limit value setting is done during controller manufacturing |
| Power supply voltage range from 12V to 36V |
Motion
| Resolution: full step, 1/2, 1/4, 1/8 |
| Speed: 300-600 steps/s |
Control
| "Front panel" manual controls |
| Connections for two limit switches for every axis |
