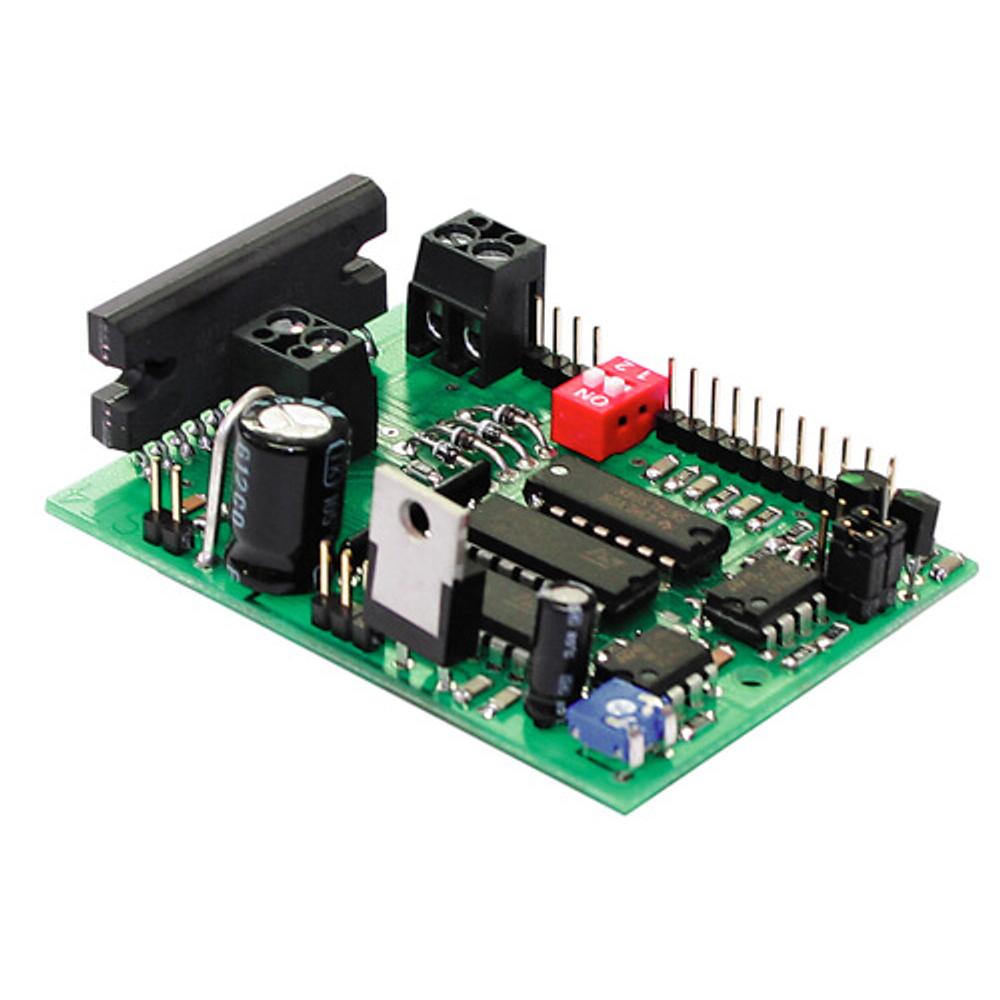

Stepper Motor Manual Controller Card 980-0050
PWM chopper type current control (up to 1.5 A per phase) Resolution: full step. 1/2, 1/4, 1/8 - selectable by DIP switches Version with speed from 300 to 600 steps/s - tunable by trimmer Version with speed from 600 to… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 980-0050 | controller board |
Out of stock
—
|
| 980-0151 | 1 axis controller (0.67A max motor current setting) |
Out of stock
—
|
| 980-0151-1.5 | 1 axis controller (1.5A max motor current setting) |
Out of stock
—
|
| 980-0252 | 2 axes controller (0.67A max motor current setting) |
Out of stock
—
|
| 980-0252-1.5 | 2 axes controller (1.5A max motor current setting) |
Out of stock
—
|
| 980-0253 | 3 axes controller (0.67A max motor current setting) |
Out of stock
—
|
| 980-0253-1.5 | 3 axes controller (1.5A max motor current setting) |
Out of stock
—
|
Specifications
Mechanical
| Operating temperature range: 0 to 70°C |
| Box size for 1-axis controller: 80x130x65 mm |
| Box size for 2 and more axis controller: 90x200x60 mm |
Electrical
| Targeted for bipolar, two phase stepper motors with current ratings of 0.25 A to 1.5 A. Current limit value setting is done during controller manufacturing |
| Power supply voltage range from 12V to 36V |
Motion
| Resolution: full step, 1/2, 1/4, 1/8 |
| Speed: 300-600 steps/s |
Control
| "Front panel" manual controls |
| Connections for two limit switches for every axis |
Description
PWM chopper type current control (up to 1.5 A per phase) Resolution: full step. 1/2, 1/4, 1/8 - selectable by DIP switches Version with speed from 300 to 600 steps/s - tunable by trimmer Version with speed from 600 to 1200 steps/s - tunable by trimmer LED indicators of status RoHS compliant
