Mirror Mounts of Side Regulation 840-0110-T, 840-0110-TE
Mirror Mount of Side Regulation 840-0110-T enables to greatly increase the thickness of optical elements as it has a convenient access to the regulation handles. L-shaped flat spring of original design renders the great stability of the mount's platform. Angular range is ±2.5° about each of two orthogonal axes. Precision screws with pitch of 0.25 mm render sensitivity of 3 arcsec.
M4 tapped holes on the sides of the base allow a variety of mounting configurations, e.g. horizontal and vertical.
The mount is produced from black anodized aluminium. L-shaped spring is produced from high quality stainless spring steel.
Mirror Mount of Side Regulation 840-0110-T. Eccentric mounting holes Ø6.2 mm for connecting cone allow handy replacement and adjustment of Adapters to required place.
Mirror Mount of Side Regulation 840-0110-TE. This option has no clear aperture. This makes it an ideal tilt platform. The flat surface clear of holes allows to mount or paste mirrors.
| Code | Description | Weight | Item price, USD | In stock | Add to cart |
All prices are FCA Vilnius.
Prices are valid only for direct orders. For orders via distributors contact them directly.

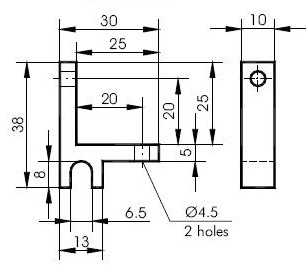

Special Base mounts 840-0110-B2 allow to mount 840-0110-T in different positions. 840-0110-T can be mounted as a tilt platform 840-0100-B1
