Quality Control Laboratory

Through the use of highly specialized equipment and processes in quality control labs EKSMA Optics is able to supply high quality precision optical components to customers. The QC laboratory has vibration-isolated optical benches, laminar flow hoods and ultrasonic cleaners. Also it is equipped with a range of high-precision measurement equipment to perform a wide variety of tests.


Optical Testing

  • Genesys-2 Spectrophotometer for precise transmission measurement at 200-1100 nm;
  • Moeller-Wedel Optical Elcomat vario140/40 Autocollimator;
  •  EKSPLA laser spectrophotometer - for precise transmission and reflection measurements at 210-2300 nm range. Laser beam dia <1 mm;
  •  G-5 Ganiometers - for prisms and wedged optics angles and flat components parallelism, piramidality measurements;
  •  ESDI Intellium Z100 Fizeau Interferometer - Computer controlled scientific interferometer for surface flatness and transmitted wavefront distortion measurements at 633 nm. Etalon accuracy lambda/20;

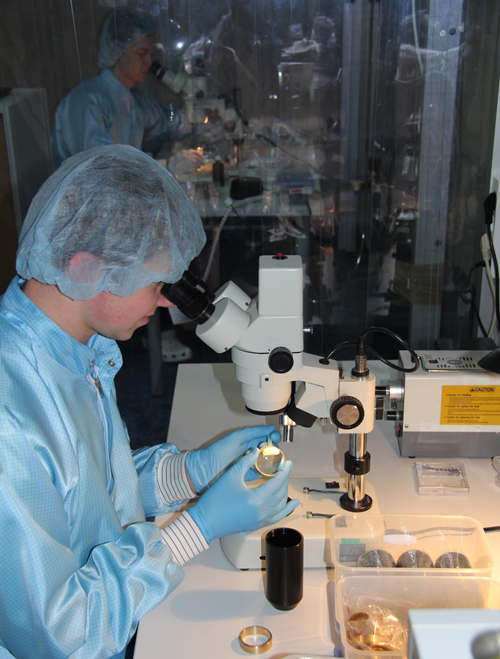

  •  Nikon Microscopes - x56-400 magnification microscopes with CCD cameras for surface quality inspection;
  •  EKSPLA NL220 laser - Nd:YAG laser operating at 1064, 532, 355, 266 for crystal cut angle accuracy checking, efficiency tests and orientation of crystals;
  •  Trioptics Super-Spherotronic HR Spherometer;




Laboratory capabilities

 The Optics Laboratory has the following capabilities:
•    determination of optical and geometrical parameters, e.g. focal length, refractive index, radius of curvature, angle, piramidality, determination of optical axis orientation for optimal wavelength conversion (2nd, 3rd harmonics generation);
•    surface finish quality measurement, according to MIL, ISO or DIN standards;
•    flatness measurements: wavefront distortion (reflected or/and transmitted beams);
•    prisms and wedges angles measurements and parallelism measurement of flat components;
•    materials and thin-film coating spectral or/and angular reflectance and transmission measurements (200-2300 nanometers);
•    optical design, using ZEMAX software.
